Fuel-filler Pipe Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Temporarily install the fuel-filler pipe to the vehicle-side stud bolt.

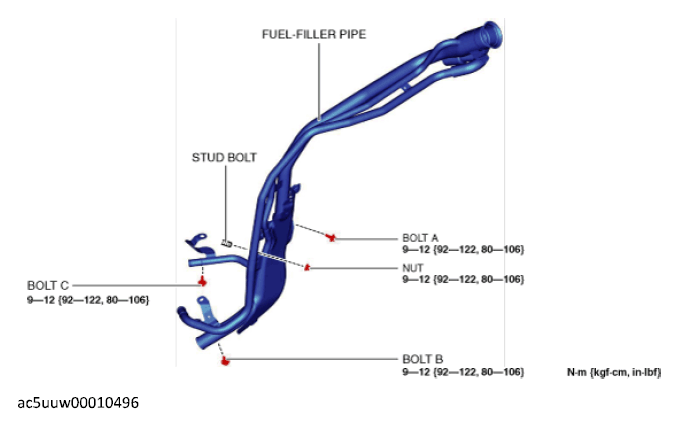

    Fig 1: Fuel-Filler Pipe Bolts With Torque Specification
    G12184341Courtesy of MAZDA MOTORS CORP.
  2. Temporarily tighten bolt A.
  3. Completely tighten bolt B.
  4. Completely tighten bolt C.
  5. Completely tighten bolt A.
  6. Completely tighten the nut.
