Dust Cover Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the rear mudguard (LH). (See MUDGUARD REMOVAL/INSTALLATION .)

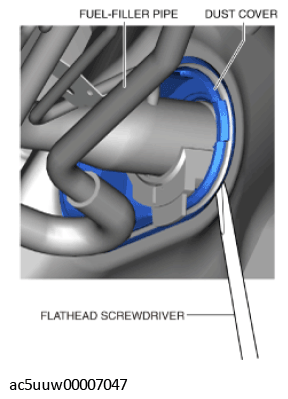

  2. Release the dust cover tab using a flathead screwdriver as shown in the figure.
    G11429590Courtesy of MAZDA MOTORS CORP.
  3. Remove the dust cover.
