Cowl Side Woofer Removal/Installation (Us): Passenger-side

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Handling the driver-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the driver-side air bag module.
  1. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION (US) .)
    2. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    4. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    6. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    7. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
    8. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    9. Shift lever knob (MTX)
    10. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    11. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    12. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    13. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    14. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    15. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
    16. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    17. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)
    18. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
    19. Driver-side knee air bag module
    20. Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
    21. Driver-side air bag module
    22. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
    23. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    24. Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    25. Clock spring
    26. Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION (US) .)
    27. Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION (US) .)
    28. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
    29. Steering wheel and column (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
    30. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
    31. Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
    32. Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION .)
    33. Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .)
    34. Audio panel (with audio panel) (See AUDIO PANEL REMOVAL/INSTALLATION .)
    35. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (US)] .) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (US)] .)
    36. Dashboard side cover (See DASHBOARD SIDE COVER REMOVAL/INSTALLATION .)
    37. Rear heat duct No. 1 (See REAR HEAT DUCT REMOVAL/INSTALLATION (US) .)
    38. Driver-side front heat duct No. 2 (See FRONT HEAT DUCT REMOVAL/INSTALLATION (US) .)
    39. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    40. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    41. Dashboard (See DASHBOARD REMOVAL (US) .) (See DASHBOARD INSTALLATION (US) .)
    42. Blower unit (to remove from passenger's side) (See BLOWER UNIT REMOVAL/INSTALLATION (US) .)
    43. Passenger-side cowl side woofer (to remove from passenger's side) (See COWL SIDE WOOFER REMOVAL/INSTALLATION (US) .)
    44. Driver-side cowl side woofer (to remove from driver's side) (See COWL SIDE WOOFER REMOVAL/INSTALLATION (US) .)
    45. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION (US) .)
    46. Sunvisor (See SUN VISOR REMOVAL/INSTALLATION .)
    47. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    48. Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    49. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    50. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    51. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
    52. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    53. Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION .)
    54. Rear vent duct No. 2 (with rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION .)
    55. Rear vent duct No. 1 (with rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION .)
    56. Rear console bracket No. 1 (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)
    57. Headliner (See HEADLINER REMOVAL/INSTALLATION (US) .)
    58. Dashboard (See DASHBOARD REMOVAL (US) .) (See DASHBOARD INSTALLATION (US) .)
    59. Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION (US) .)

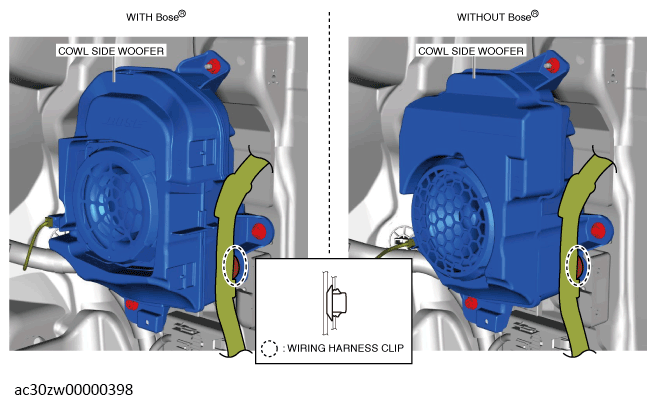

  3. Disconnect the connector.
    G13561063Courtesy of MAZDA MOTORS CORP.
  4. Remove the wiring harness clip.
  5. Remove the bolt.

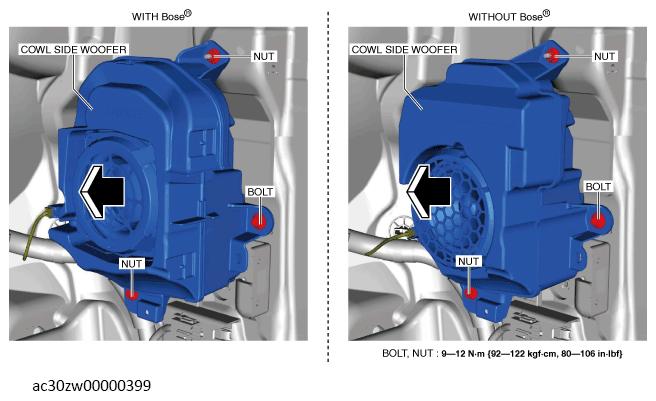

    Fig 1: Cowl Side Woofer, Bolts And Nuts With Torque Specification
    G13561064Courtesy of MAZDA MOTORS CORP.
  6. Remove the nuts.
  7. Remove the cowl side woofer in the direction of the arrow shown in the illustration.
  8. Install in the reverse order of removal.
