Center Roof Antenna Removal/Installation: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts:
1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION (US) .)
2. Sunvisor (See SUN VISOR REMOVAL/INSTALLATION .)
3. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION (US) .)
4. Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION .)
5. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
6. Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
7. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
8. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
9. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
10. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
Remove the bolts.

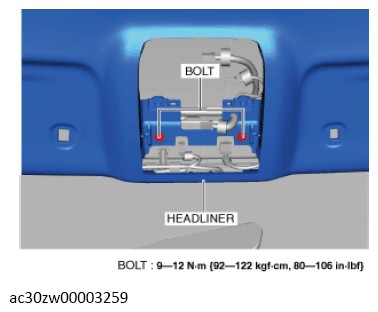

Fig 1: Headliner And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

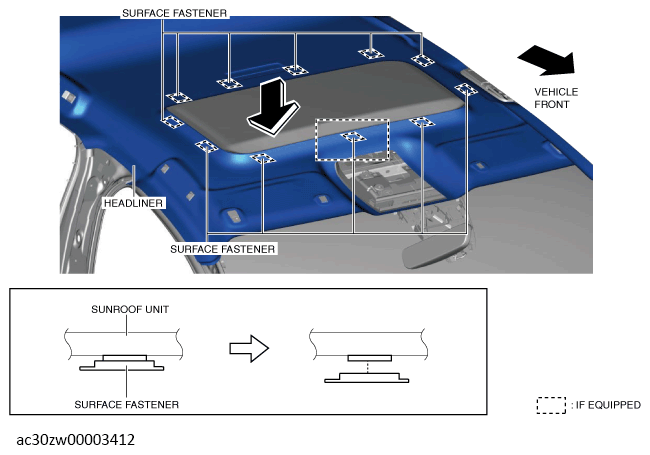

Move the headliner in the direction of the arrows shown in the illustration and detach the surface fasteners from the sunroof unit. (with sunroof system)

Courtesy of MAZDA MOTORS CORP.

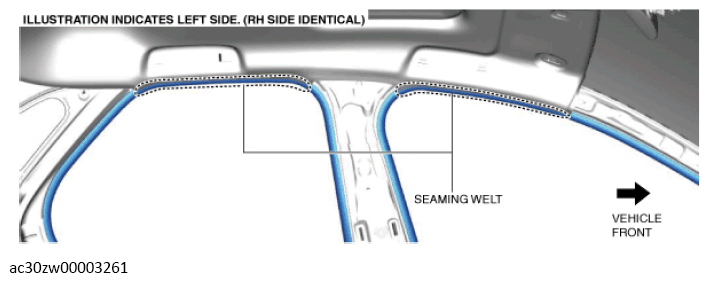

Partially peel back the seaming welts.

Courtesy of MAZDA MOTORS CORP.

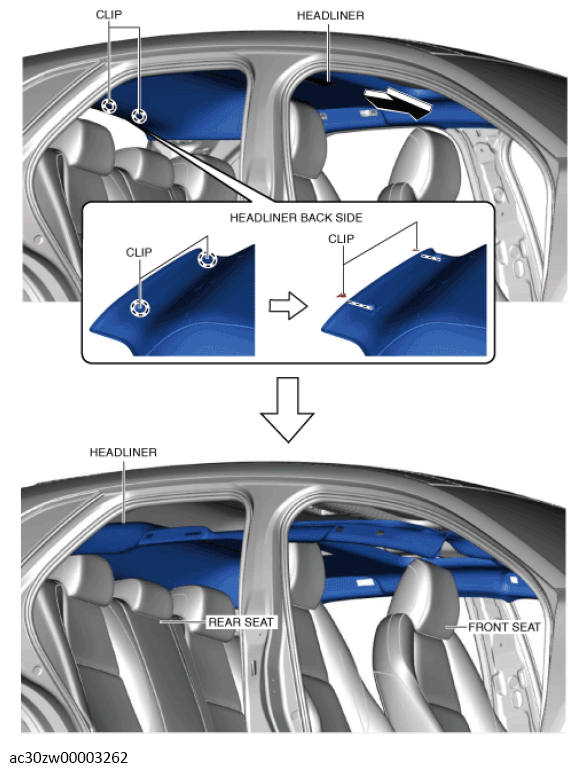

Slide the headliner in the direction of the arrow shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
Set the headliner on front seats and rear seats.
Disconnect the connector.

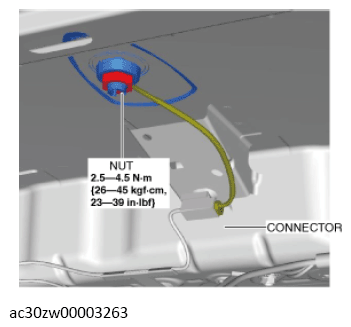

Fig 2: Headliner, Connector And Nut With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the nut.

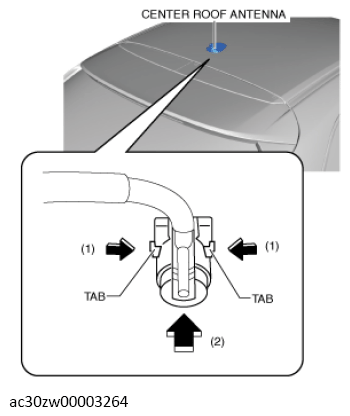

While pressing the center roof antenna tabs in the direction of arrows (1) shown in the illustration, press the center roof antenna in the direction of arrow (2) to detach the center roof antenna tabs from the body.

Courtesy of MAZDA MOTORS CORP.
Remove the center roof antenna.
Install in the reverse order of removal. (See HEADLINER INSTALLATION NOTE .)
