Smart Brake Support (SBS) Location Index (Us)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

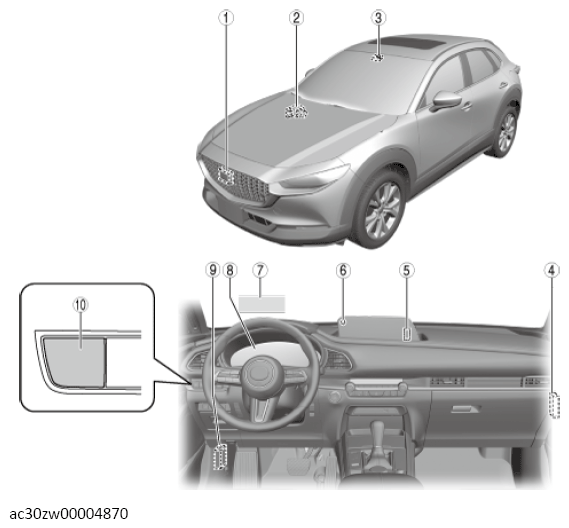

COMPONENT DESCRIPTION

1	Front radar sensor (See FRONT RADAR SENSOR REMOVAL/INSTALLATION .) (See FRONT RADAR SENSOR AIMING .) (See FRONT RADAR SENSOR INSPECTION .)
2	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION [L.H.D. (US)] .) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE (US) .) (See DSC HU/CM INSPECTION .)
3	Forward sensing camera (FSC) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION .) (See FORWARD SENSING CAMERA (FSC) AIMING .) (See FORWARD SENSING CAMERA (FSC) INSPECTION .)
4	Driver monitoring camera unit (See DRIVER MONITORING CAMERA UNIT REMOVAL/INSTALLATION (US) .) (See DRIVER MONITORING CAMERA UNIT INSPECTION .)
5	Driver monitoring camera LED (See DRIVER MONITORING CAMERA LED REMOVAL/INSTALLATION .)
6	Driver monitoring camera (See DRIVER MONITORING CAMERA REMOVAL/INSTALLATION .)
7	Active driving display (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION (US) .) (See ACTIVE DRIVING DISPLAY INSPECTION .)
8	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .) (See INSTRUMENT CLUSTER INSPECTION (US) .)
9	Body control module (BCM) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION (US) .) (See BODY CONTROL MODULE (BCM) INSPECTION (US) .) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION (US) .) (See VCM INITIAL SETTING .)
10	i-ACTIVSENSE switch (See I-ACTIVSENSE SWITCH REMOVAL/INSTALLATION .) (See I-ACTIVSENSE SWITCH INSPECTION .)
