SKYACTIV-G 2.5

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

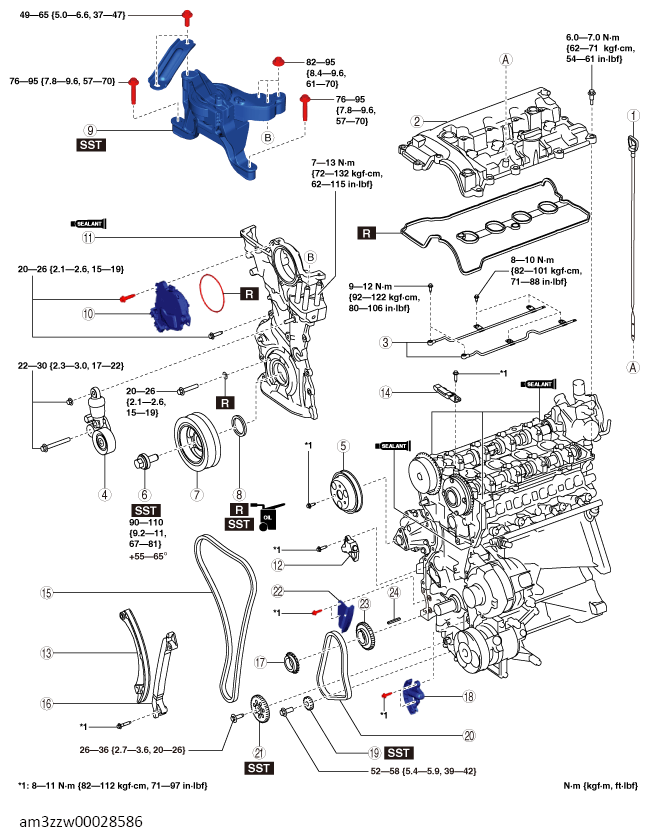

Fig 1: Timing Chain Components With Torque Specification (SKYACTIV-G 2.5)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Dipstick
2	Cylinder head cover (See CYLINDER HEAD COVER REMOVAL NOTE .) (See CYLINDER HEAD COVER INSTALLATION NOTE .)
3	Oil shower pipe (See OIL SHOWER PIPE INSTALLATION NOTE .)
4	Drive belt auto tensioner (See DRIVE BELT AUTO TENSIONER INSTALLATION NOTE .)
5	Water pump pulley (See WATER PUMP REMOVAL/INSTALLATION .)
6	Crankshaft pulley lock bolt (See FRONT OIL SEAL REPLACEMENT [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))] .)
7	Crankshaft pulley (See FRONT OIL SEAL REPLACEMENT [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))] .)
8	Front oil seal (See FRONT OIL SEAL REPLACEMENT [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))] .)
9	No. 3 engine mount (See NO. 3 ENGINE MOUNT REMOVAL NOTE .) (See NO. 3 ENGINE MOUNT INSTALLATION NOTE .)
10	Electric variable valve timing motor/driver (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))] .)
11	Engine front cover (See ENGINE FRONT COVER REMOVAL NOTE .) (See ENGINE FRONT COVER INSTALLATION NOTE .)
12	Chain tensioner (See TIMING CHAIN REMOVAL NOTE .) (See TIMING CHAIN INSTALLATION NOTE .)
13	Tensioner arm (See TIMING CHAIN REMOVAL NOTE .) (See TIMING CHAIN INSTALLATION NOTE .)
14	(See TIMING CHAIN REMOVAL NOTE .) (See TIMING CHAIN INSTALLATION NOTE .)
15	Timing chain (See TIMING CHAIN REMOVAL NOTE .) (See TIMING CHAIN INSTALLATION NOTE .)
16	Chain guide (No. 2)
17	Crankshaft sprocket
18	Oil pump chain tensioner (See OIL PUMP CHAIN REMOVAL NOTE (SKYACTIV-G 2.5) .) (See OIL PUMP CHAIN INSTALLATION NOTE (SKYACTIV-G 2.5) .)
19	Balancer shaft sprocket (See OIL PUMP CHAIN REMOVAL NOTE (SKYACTIV-G 2.5) .) (See OIL PUMP CHAIN INSTALLATION NOTE (SKYACTIV-G 2.5) .)
20	Oil pump chain (See OIL PUMP CHAIN REMOVAL NOTE (SKYACTIV-G 2.5) .) (See OIL PUMP CHAIN INSTALLATION NOTE (SKYACTIV-G 2.5) .)
21	Oil pump driven sprocket (See OIL PUMP CHAIN REMOVAL NOTE (SKYACTIV-G 2.5) .) (See OIL PUMP CHAIN INSTALLATION NOTE (SKYACTIV-G 2.5) .)
22	Oil pump chain guide
23	Oil pump drive sprocket
24	Key
