Drive Belt Auto Tensioner Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

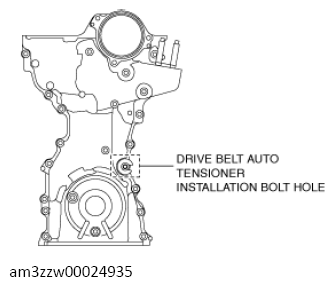

  1. Remove the temporarily assembled bolt at the location shown in the illustration.
    G13556625Courtesy of MAZDA MOTORS CORP.
  2. Install the drive belt auto tensioner. (See DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION .)
