Engine Front Cover Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the A/F sensor connector and clip shown in the illustration.
    G13556577Courtesy of MAZDA MOTORS CORP.
  2. Remove the insulator shown in the illustration.
    Fig 1: Insulator Nut With Torque Specification
    G13556578Courtesy of MAZDA MOTORS CORP.
  3. Set the wiring harness bracket shown in the illustration aside.

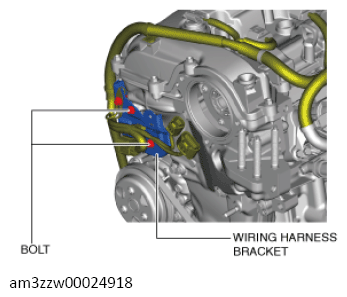

    G13556579Courtesy of MAZDA MOTORS CORP.
  4. Remove the engine front cover installation bolts.
  5. Using a screwdriver wrapped in a cloth, peel the silicone sealant away a little at a time, and remove the engine front cover.
    CAUTION:
    • Do not apply excessive force to the screwdriver. Otherwise, the engine front cover could be damaged.
    • Be careful not to scratch or damage the seal surface. Otherwise, it could cause oil leakage.

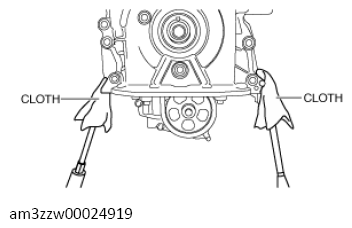

    G13556580Courtesy of MAZDA MOTORS CORP.

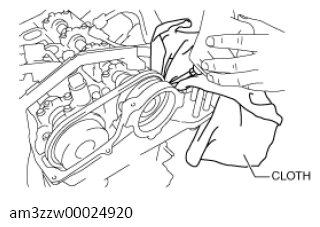

    G13556581Courtesy of MAZDA MOTORS CORP.
