No. 4 Engine Mount: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Slots have been adopted for the No. 4 engine mount bracket installation holes. If the No. 4 engine mount bracket is deviated from the original position when installing the No. 4 engine mount bracket, engine noise or vibration could increase. Before removing the No. 4 engine mount bracket, place alignment marks on the No. 4 engine mount bracket so that they can be assembled to the same positions as before removal.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
Remove the following parts as a single unit: (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Air hose
- Air cleaner cover
- Air cleaner element
- Air cleaner case
- Fresh-air duct
- Resonance chamber
Remove the PCM component. (See PCM REMOVAL/INSTALLATION .)
Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION .)
Disconnect the control cable. (MTX) (See appropriate service information.)

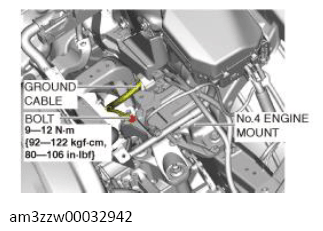

Remove the bolt shown in the illustration and set the ground cable aside.

Fig 1: No. 4 Engine Mount, Ground Cable And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

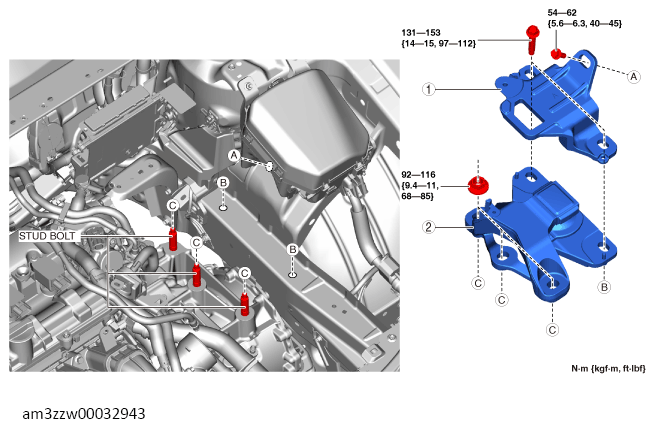

Fig 2: No. 4 Engine Mount Bracket Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	No. 4 engine mount bracket (See NO. 4 ENGINE MOUNT BRACKET REMOVAL NOTE .) (See NO. 4 ENGINE MOUNT BRACKET AND RUBBER INSTALLATION NOTE .)
2	No. 4 engine mount rubber (See NO. 4 ENGINE MOUNT RUBBER REMOVAL NOTE .) (See NO. 4 ENGINE MOUNT BRACKET AND RUBBER INSTALLATION NOTE .)
