No. 4 engine mount bracket and rubber installation note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When replacing the No. 4 engine mount bracket, place a mark at the same position as the one placed before removal.
If the No. 4 engine mount bracket nut is loosened, tighten the transaxle stud bolts because they may have loosened.

Measure the projection of the transaxle stud bolts. (MTX)
- If the projection amount is not within the range, adjust the projection amount of the stud bolt.
Courtesy of MAZDA MOTORS CORP.

Projection A of stud bolt No. 1

40.0-42.0 mm {1.58-1.65 in}

Projection B of stud bolt No. 2

30.7-32.7 mm {1.21-1.28 in}

Projection C of stud bolt No. 3

70.7-72.7 mm {2.79-2.86 in}
Tighten the transaxle stud bolts. (ATX)

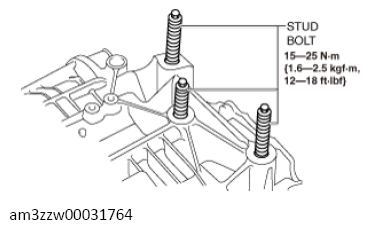

Fig 1: Transaxle Stud Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Align the alignment marks on the No. 4 engine mount rubber and nuts, and temporarily tighten the nuts shown in the illustration.

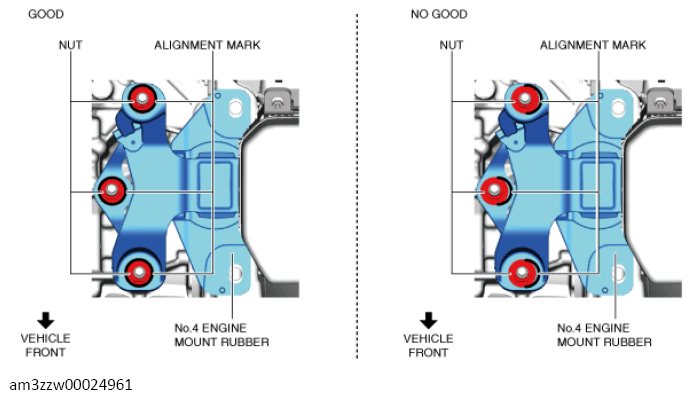

ATX

Courtesy of MAZDA MOTORS CORP.

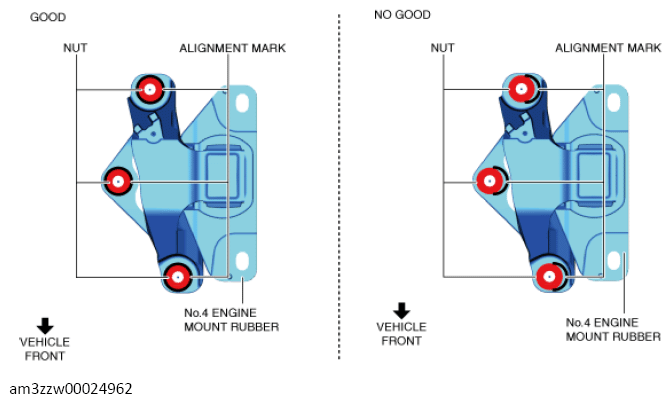

MTX

Courtesy of MAZDA MOTORS CORP.
Align the alignment marks on the No. 4 engine mount bracket and bolts, and temporarily tighten the bolts shown in the illustration.

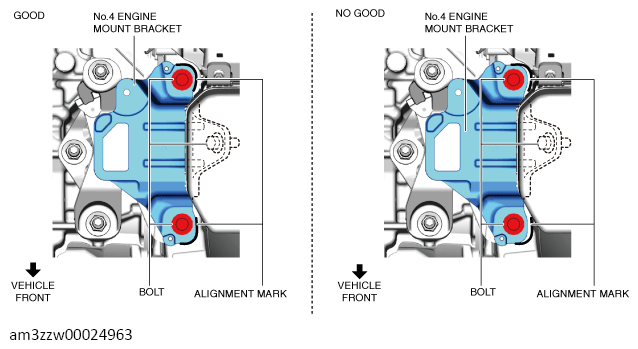

ATX

Courtesy of MAZDA MOTORS CORP.

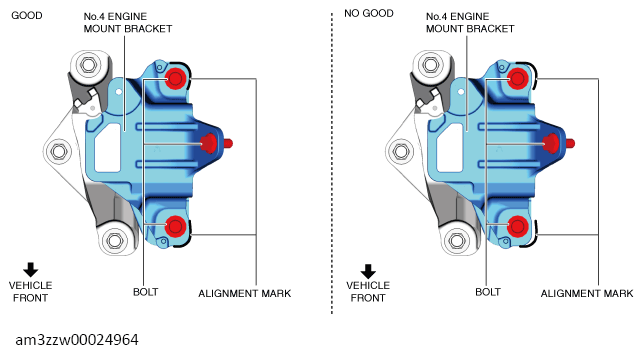

MTX

Courtesy of MAZDA MOTORS CORP.
Install the No. 4 engine mount bracket and rubber and temporarily tighten the nuts and bolts shown in the illustration.

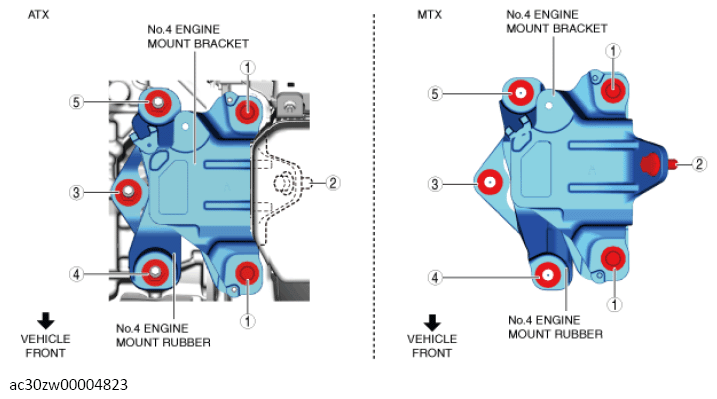

Fig 2: No. 4 Engine Mount Bracket - Rubber, Nuts And Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
