Rear Differential Removal/Installation (Us): Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Oil and Chemical Type

Sealant

Type: TB1217C or equivalent

CAUTION:

Performing the following procedures could cause an open circuit in the rear ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the rear ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.
If the characteristic value of a new coupling component is not input to the PCM or the characteristic value is input incorrectly after replacing the coupling component, it could result in the following conditions.

The system does not operate normally.
A problem with durability of the coupling component occurs.

After replacing the coupling component, read out the characteristic value of a new coupling component and write it to the PCM. (See COUPLING COMPONENT CALIBRATION DATA WRITING .)

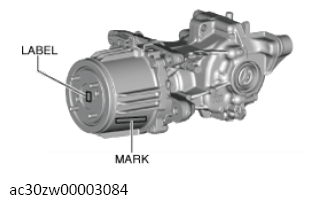

Read out the characteristic value of the coupling component from the label or mark shown in the illustration.

Courtesy of MAZDA MOTORS CORP.

Switch the ignition ON (engine off).
Release the electric parking brake.
Switch the ignition off while pressing the electric parking brake switch.
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Drain the rear differential oil into a container. (See DIFFERENTIAL OIL REPLACEMENT .)
Remove the TWC. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))] .) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))] )
Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION (US) .)
Remove the rear drive shaft. (See REAR DRIVE SHAFT REMOVAL/INSTALLATION (US) .)
Disconnect the hose. (See HOSE INSTALLATION NOTE .)

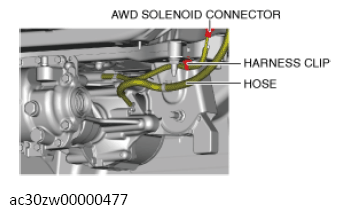

Disconnect the AWD solenoid connector and harness clip.

Courtesy of MAZDA MOTORS CORP.
Support the rear differential component using a jack.

Courtesy of MAZDA MOTORS CORP.
WARNING:
- Always verify that the rear differential component is securely supported by a jack. If the rear differential component falls off, it can cause serious injury or death, and damage to the vehicle.
Remove in the order indicated in the table.
Install in the reverse order of removal.
Add the specified rear differential oil. (See DIFFERENTIAL OIL REPLACEMENT .)

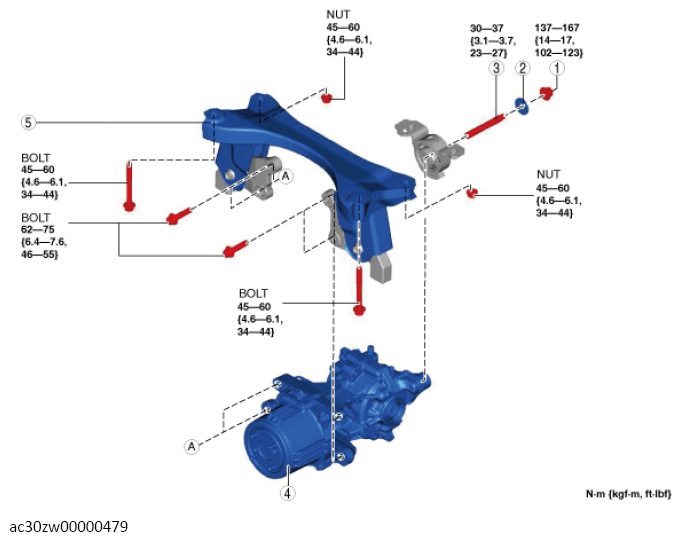

Fig 1: Rear Differential Components With Torque Specification (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Nut
2	Washer
3	Stud bolt
4	Rear differential component
5	Rear differential member (See REAR DIFFERENTIAL MEMBER REMOVAL NOTE .) (See REAR DIFFERENTIAL MEMBER INSTALLATION NOTE .)

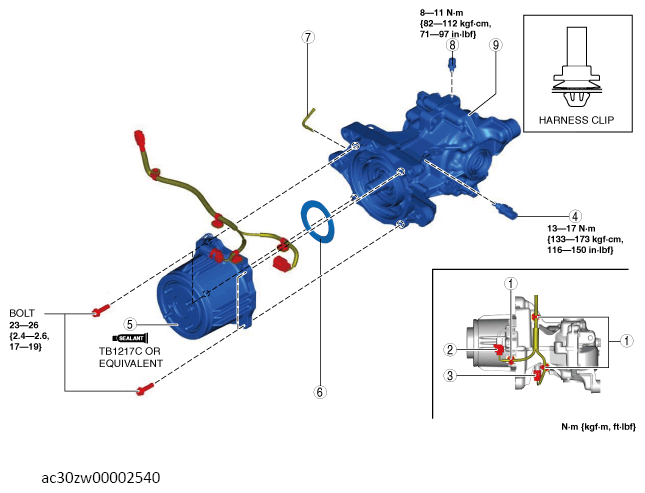

Fig 2: Rear Differential Components With Torque Specification (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Harness clip
2	AWD solenoid connector
3	Differential oil temperature sensor connector
4	Differential oil temperature sensor
5	Coupling component (See COUPLING COMPONENT REMOVAL NOTE .) (See COUPLING COMPONENT INSTALLATION NOTE .)
6	Washer
7	Pipe
8	Breather
9	Rear differential
