Rear Differential Member Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Detach the clip.
    G13558096Courtesy of MAZDA MOTORS CORP.
  2. Remove the rear differential mount rubber (front).

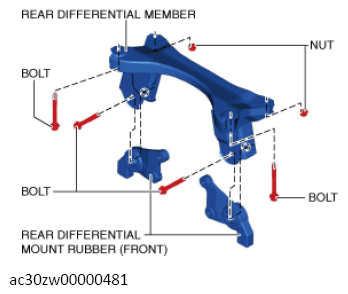

    G13558097Courtesy of MAZDA MOTORS CORP.
  3. Remove the rear differential member.
