Rear Differential Member Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear differential member.

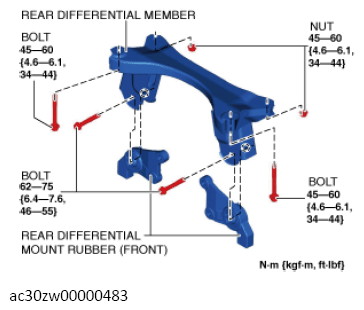

    Fig 1: Rear Differential Member, Rear Differential Mount Rubber (Front), Nuts And Bolts With Torque Specification
    G13558100Courtesy of MAZDA MOTORS CORP.
  2. Install the rear differential mount rubber (front).

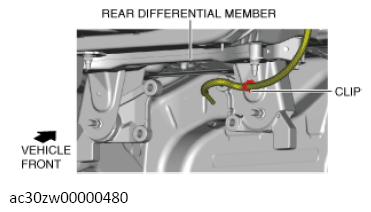

  3. Assemble the clip.
G13558096Courtesy of MAZDA MOTORS CORP.
