Water Hose: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (VIN L (US))] .)
    • Air cleaner cover
    • Air cleaner element
    • Fresh-air duct
    • Air cleaner case
    • Air hose
    • Resonance chamber
  3. Remove the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (VIN L (US))] .)
  4. Remove the battery tray and PCM component as a single unit. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G (VIN L (US))] .)
  5. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  6. Remove the front under cover No. 1. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
  7. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G (VIN L (US))] .)
  8. Remove in the order indicated in the table.
  9. Install in the reverse order of removal.
  10. Add the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G (VIN L (US))] .)

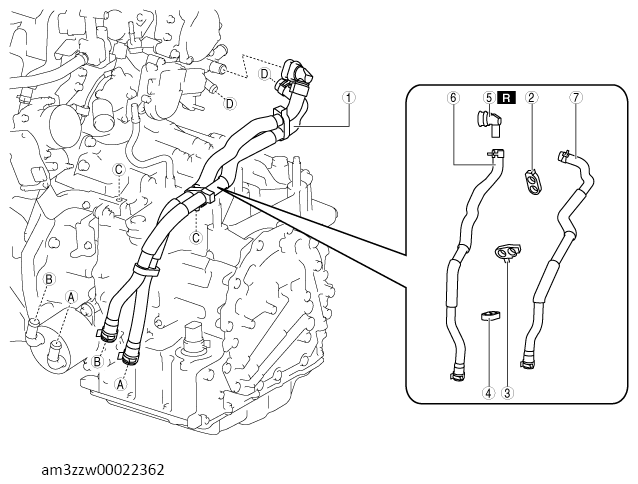

G13558593Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Water hose component
(See WATER HOSE NO. 1 (COOLANT CONTROL VALVE SIDE) REMOVAL NOTE .)
(See WATER HOSE NO. 1 AND NO. 2 (OIL COOLER SIDE) INSTALLATION NOTE .)
(See WATER HOSE NO. 1 (COOLANT CONTROL VALVE SIDE) INSTALLATION NOTE .)
(See WATER HOSE NO. 2 (WATER PIPE SIDE) INSTALLATION NOTE .)
2 Hose clip No. 1
3 Hose clip No. 2
4 Hose clip No. 3
5 Quick release connector
6 Water hose No. 1
(See WATER HOSE NO. 1 (COOLANT CONTROL VALVE SIDE) REMOVAL NOTE .)
(See WATER HOSE NO. 1 AND NO. 2 (OIL COOLER SIDE) INSTALLATION NOTE .)
(See WATER HOSE NO. 1 (COOLANT CONTROL VALVE SIDE) INSTALLATION NOTE .)
7 Water hose No. 2
(See WATER HOSE NO. 1 AND NO. 2 (OIL COOLER SIDE) INSTALLATION NOTE .)
(See WATER HOSE NO. 2 (WATER PIPE SIDE) INSTALLATION NOTE .)
