ATF Level Inspection

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  2. Remove the front under cover No. 1. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
  3. Remove the dipstick securing bolt.
  4. Connect the M-MDS to the DLC-2 and display the PID TFT.
  5. Warm up the engine until the ATF temperature is 50°C {122°F}.
  6. Remove the dipstick and wipe ATF off using a clean cloth while leaving the engine idling.
    WARNING:
    • Keep hands and tools away from the cooling fan even if the cooling fan is not operating to prevent injury, or damage to the cooling fan.
    • Do not touch parts which have become heated. Otherwise, it could cause severe burns or serious injury.

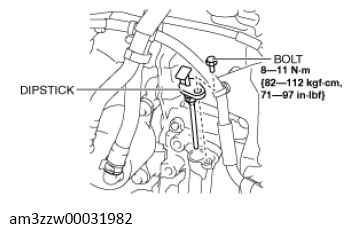

    Fig 1: Dipstick Securing Bolt With Torque Specification
    G13558432Courtesy of MAZDA MOTORS CORP.
  7. Insert the dipstick and pull it out again.
  8. Verify that the ATF is adhering between L and F on the dipstick.
    G13176749Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The ATF color is blue.
    • Only use ATF FZ.
    ATF type
    ATF FZ
  9. Insert the dipstick and install the securing bolt.
    Fig 2: Dipstick Securing Bolt With Torque Specification
    G13558432Courtesy of MAZDA MOTORS CORP.
  10. Install the front under cover No. 1. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
  11. Install the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
