Steering Gear And Linkage Assembly (Us): Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Special service tool (SST)

49 JP02 001
Adjustable wrench

Courtesy of MAZDA MOTORS CORP.

49 T025 001
Boot clamp crimpers

Courtesy of MAZDA MOTORS CORP.

Replacement part

Boot band

Quantity: 2

Location of use: Boot

Oil and chemical type

Grease

Type: Molywhite

CAUTION:

If using a vise, secure the steering gear to the vise using a copper plate or cloth to prevent steering gear damage.

Assemble in the order shown in the illustration.
Install the steering gear and linkage to the front crossmember component. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION (US) .)

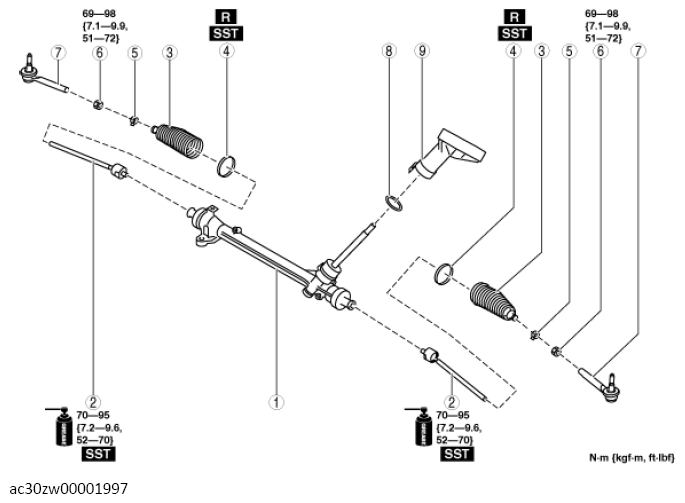

Fig 1: Steering Gear And Linkage Assembly Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Steering gear
2	Tie rod (See TIE ROD ASSEMBLY NOTE .)
3	Boot
4	Boot band (See BOOT BAND ASSEMBLY NOTE .)
5	Boot clamp
6	Locknut
7	Tie-rod end (See TIE-ROD END ASSEMBLY NOTE .)
8	O-ring
9	Dust cover (See DUST COVER ASSEMBLY NOTE .)
