Tie Rod Assembly Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

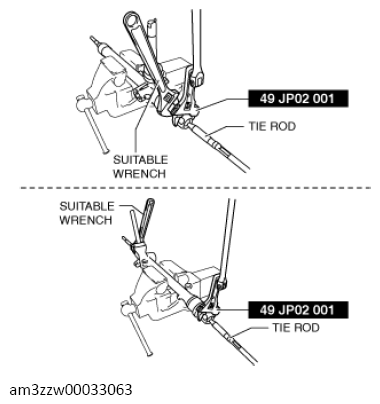

- Install the SST to the torque wrench as shown in the illustration, set it on the tie rod, and then measure dimensions A and L shown in the illustration.
- Tighten the tie rod using the SST after calculating the tightening torque using the following formula.
Formula
Tx (L/A)
T: Tightening torque
L: Torque wrench effective length
A: Dimension A measured in Step 1
