Vanity Mirror Illumination Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts:
1. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION (US) .)
2. Sun visor (See SUN VISOR REMOVAL/INSTALLATION .)
3. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
4. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION (US) .)
5. Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
6. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
7. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
8. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
9. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
10. Shift lever knob (MTX)
11. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
12. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
13. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
14. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
15. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
16. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
17. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)
18. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
19. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
20. Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION .)
21. Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION .)
22. Rear vent duct (with rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION .)
23. Rear console bracket No. 1 (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)
24. Headliner (See HEADLINER REMOVAL/INSTALLATION (US) .)

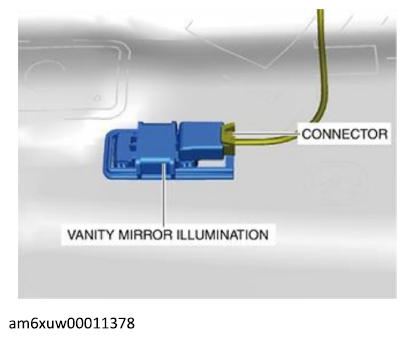

Disconnect the connector.

Courtesy of MAZDA MOTORS CORP.

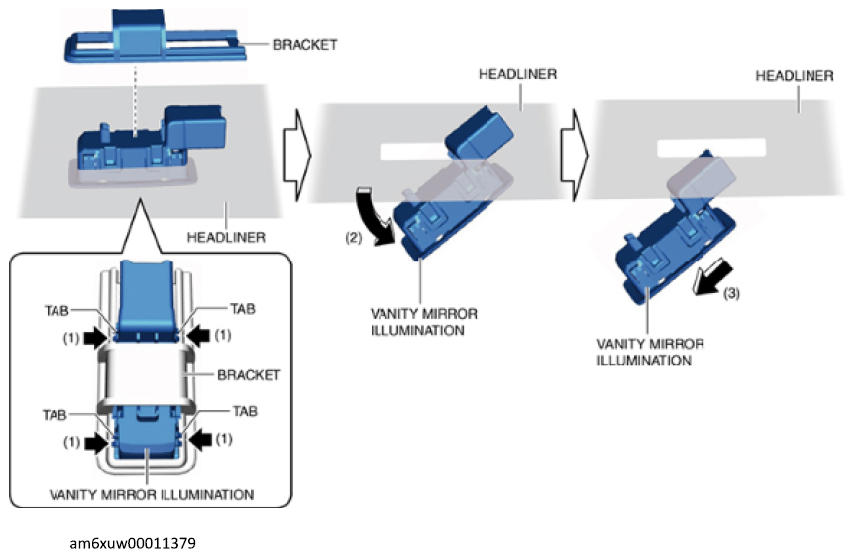

Remove the bracket while pressing the vanity mirror illumination tabs (1).
CAUTION:
- If the vanity mirror illumination is removed from the bracket, the vanity mirror illumination may fall off and be damaged. When removing the vanity mirror illumination from the bracket, hold the vanity mirror illumination on the lens side with a hand during servicing.
Courtesy of MAZDA MOTORS CORP.
Move the vanity mirror illumination in the direction of the arrow (2), (3) and remove the vanity mirror illumination from the headliner.
Install in the reverse order of removal.
