Lower Outer Mirror Garnish

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)
Remove the upper outer mirror garnish. (See UPPER OUTER MIRROR GARNISH .)

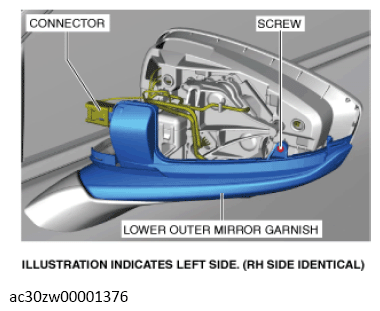

Disconnect the connector.

Courtesy of MAZDA MOTORS CORP.
Remove the screw.

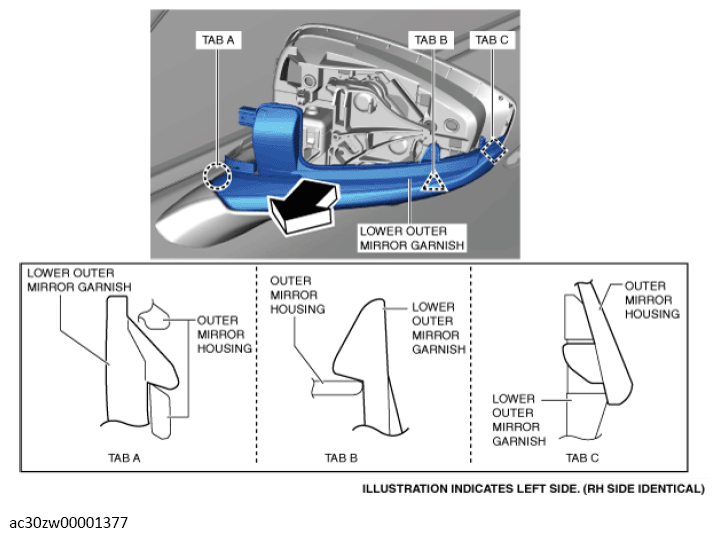

Using a tape-wrapped flathead screwdriver, detach the tabs in the order of tabs A, B and C while pulling the lower outer mirror garnish in the direction of the arrow shown in the illustration.

Courtesy of MAZDA MOTORS CORP.

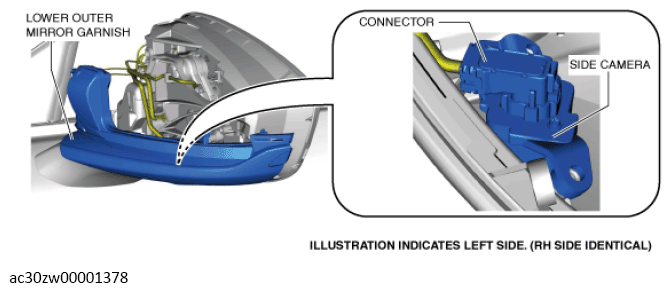

Disconnect the connector. (with side camera)

Courtesy of MAZDA MOTORS CORP.
Remove the lower outer mirror garnish.
NOTE:
- If the lower outer mirror garnish is replaced, remove the side turn light. (See SIDE TURN LIGHT REMOVAL/INSTALLATION .)
- If the lower outer mirror garnish is replaced, remove the side camera. (with side camera) (See SIDE CAMERA REMOVAL/INSTALLATION .)
Install in the reverse order of removal.
Perform the 360° view monitor system aiming. (with side camera) (See 360°VIEW MONITOR SYSTEM AIMING .)
