Upper Outer Mirror Garnish
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)

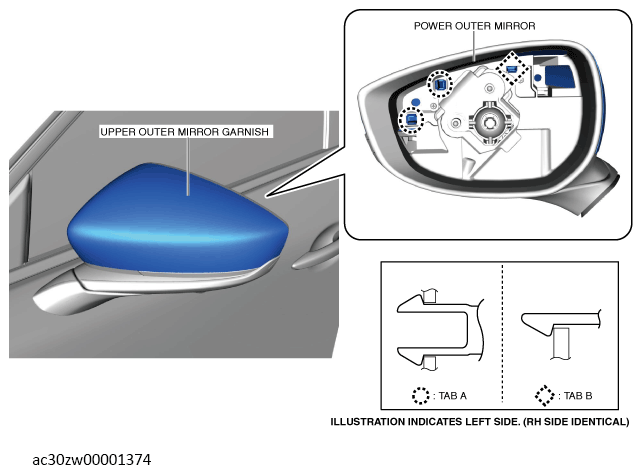

- Using a remover tool, remove tabs A and B.

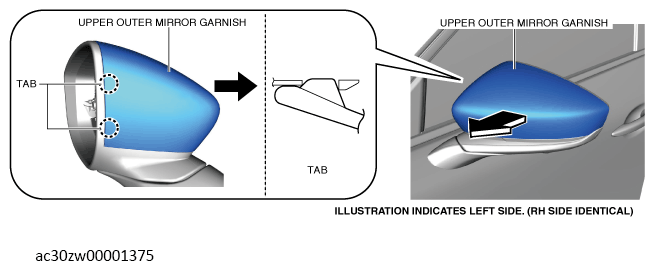

- Remove the upper outer mirror garnish in the direction of the arrow shown in the illustration while detaching the tabs.
- Install in the reverse order of removal.
