Windshield Washer Hose A

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out.

    When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  3. Remove the front deflector (RH). (See DEFLECTOR REMOVAL/INSTALLATION .)
  4. Remove the front over fender (RH). (See FRONT OVER FENDER REMOVAL/INSTALLATION .)

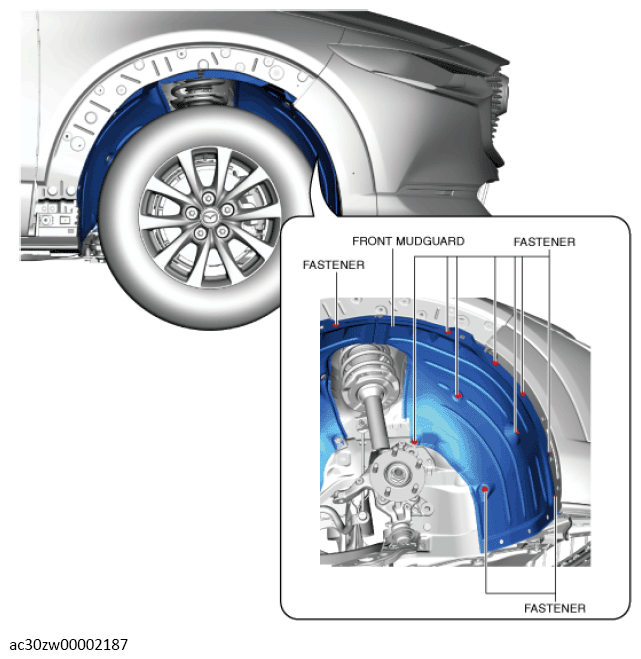

  5. Remove the fasteners.
    G13560981Courtesy of MAZDA MOTORS CORP.
  6. Set the front mudguard (RH) aside.

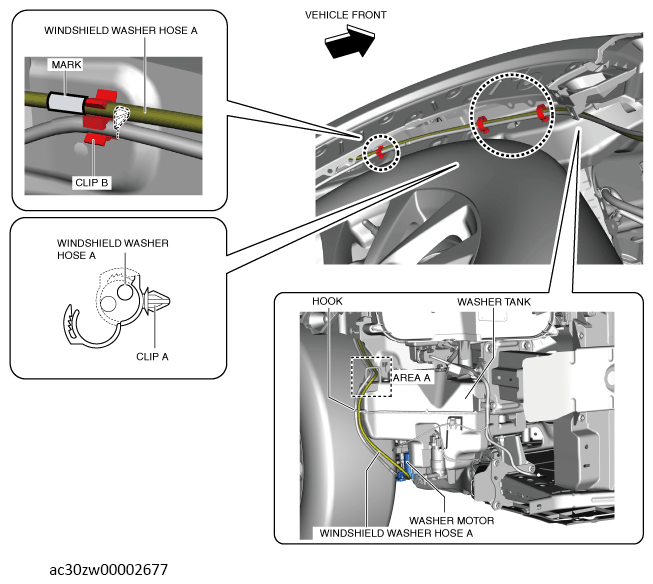

  7. Disconnect the windshield washer hose A from the washer motor.
    G13560982Courtesy of MAZDA MOTORS CORP.
  8. Remove the windshield washer hose A from the washer tank hook. (See WINDSHIELD WASHER HOSE B .)
  9. Pull out the windshield washer hose A from area A of the washer tank.
  10. Remove the windshield washer hose A from the clips A and B.

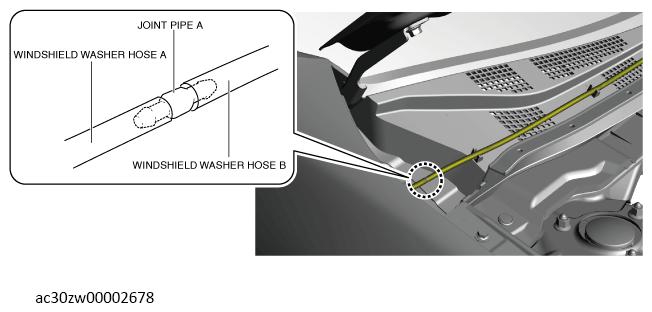

  11. Disconnect the windshield washer hose A from the joint pipe A.
    G13560983Courtesy of MAZDA MOTORS CORP.
  12. Remove the windshield washer hose A.
  13. Install in the reverse order of removal.
