Windshield Washer Hose B

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the windshield washer hose B from the joint pipe A.
    G13560983Courtesy of MAZDA MOTORS CORP.

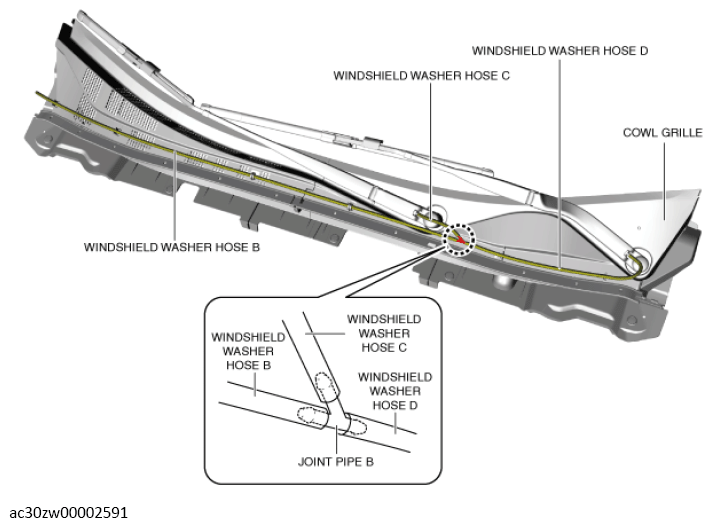

  2. Disconnect the windshield washer hose B from the joint pipe B.
    G13560985Courtesy of MAZDA MOTORS CORP.

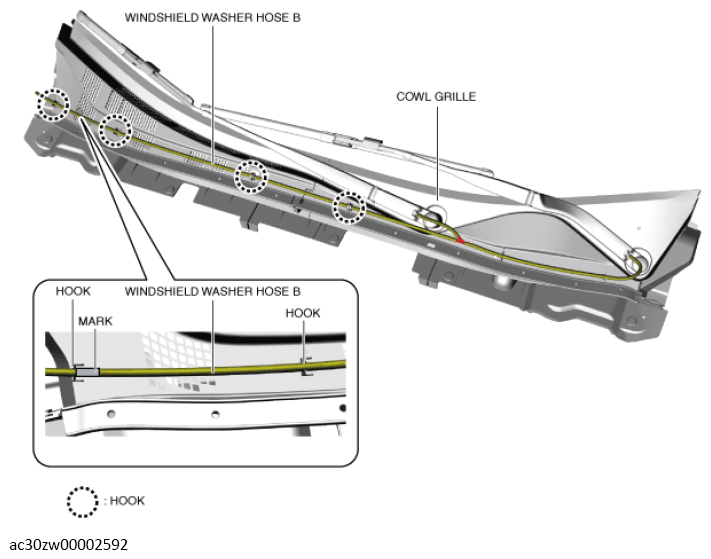

  3. Remove the windshield washer hose B from the hooks.
    G13560986Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
