Except U.S.A. And CANADA: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Remove the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (VIN M (US))] .)
Remove the insulator (rear). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (VIN M (US))] .)

Remove in the order indicated in the table.

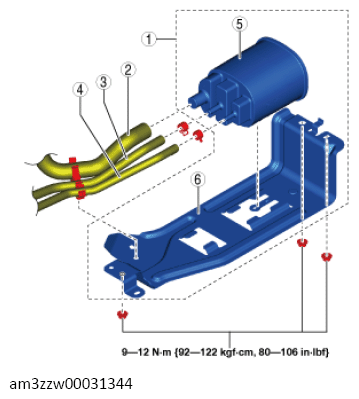

Fig 1: Charcoal Canister Components With Torque Specification (Except U.S.A. And Canada)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Charcoal canister component (See CHARCOAL CANISTER COMPONENT INSTALLATION NOTE .)
2	Evaporative hose No. 1 (See EVAPORATIVE HOSE INSTALLATION NOTE .)
3	Evaporative hose No. 2 (See EVAPORATIVE HOSE INSTALLATION NOTE .)
4	Evaporative hose No. 3 (See EVAPORATIVE HOSE INSTALLATION NOTE .)
5	Charcoal canister (See CHARCOAL CANISTER REMOVAL NOTE .)
6	Charcoal canister bracket

Install in the reverse order of removal.
