Charcoal canister removal note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the charcoal canister and charcoal canister bracket as a single unit.

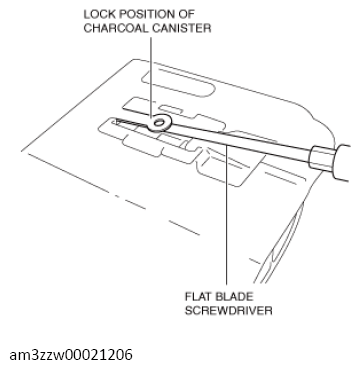

  2. Release the lock as shown in the illustration.
    G13557422Courtesy of MAZDA MOTORS CORP.
  3. Remove the charcoal canister.
