Charcoal canister component installation note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

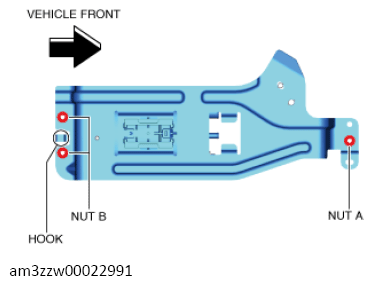

- Install the charcoal canister bracket hook into the hole on the body.
 Courtesy of MAZDA MOTORS CORP.
|
- Temporarily tighten nut A.
- Temporarily tighten nuts B.
- Completely tighten nut A.
- Completely tighten nuts B.
