Rear Oil Seal Replacement: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Special Service Tool (SST)

49 S033 101
Dust cover installer

Courtesy of MAZDA MOTORS CORP.

Replacement Part

Rear oil seal

Quantity: 1

Location of use: Cylinder block

Oil and Chemical Type

Engine oil

Type: Recommended oil

Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION (EV6A-EL) (US) . (2WD, ATX)) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION (EV6AX-EL) (US) . (AWD, ATX))
Remove the flywheel (MTX) or the drive plate (ATX). (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION (EV6A-EL) (US) (ATX))

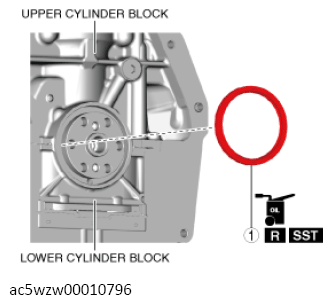

Remove in the order indicated in the table.

Install in the reverse order of removal.

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear oil seal (See REAR OIL SEAL REMOVAL NOTE .) (See REAR OIL SEAL INSTALLATION NOTE .)
