Rear Oil Seal Removal Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

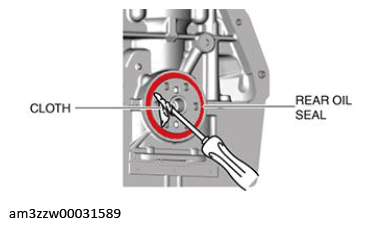

- Cut the rear oil seal lip using a utility knife.
- Remove the rear oil seal using a flathead screwdriver with the tip protected by a clean cloth to prevent damage to the crankshaft.
 Courtesy of MAZDA MOTORS CORP.
|
