Rear Oil Seal Installation Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Apply clean engine oil to the inner surface of a new rear oil seal.
- Insert the rear oil seal into the cylinder block by hand.

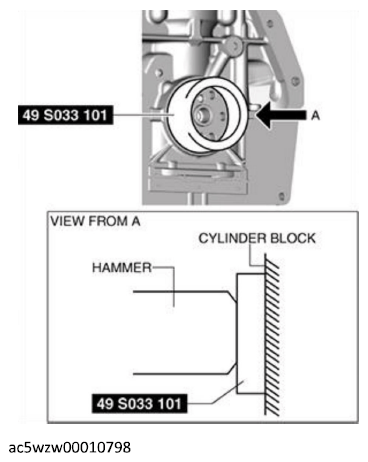

- Tap the rear oil seal in evenly using the SST and a hammer.
 Courtesy of MAZDA MOTORS CORP.
|
 Courtesy of MAZDA MOTORS CORP.
|

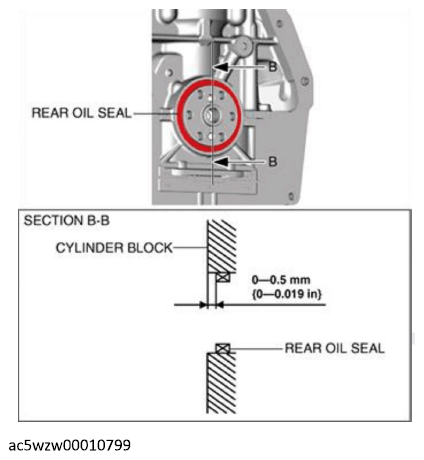

Rear oil seal press on amount
0-0.5 mm {0-0.019 in} from edge surface of cylinder block
