No. 3 Engine Mount: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Slots have been adopted for the No. 3 engine mount installation holes. If the No. 3 engine mount is deviated from the original position when installing the No. 3 engine mount, engine noise or vibration could increase. Before removing the No. 3 engine mount, place alignment marks on the No. 3 engine mount and body so that they can be assembled to the same positions as before removal.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  3. Remove the bolt shown in the illustration and set the ground cable aside.

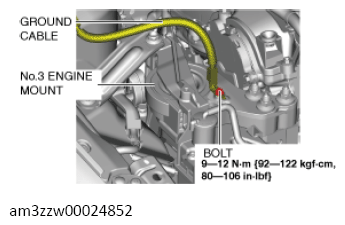

    Fig 1: No. 3 Engine Mount, Ground Cable And Bolt With Torque Specification
    G13556741Courtesy of MAZDA MOTORS CORP.
  4. Set the cooler hose (LO) aside. (See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-G] .)
  5. Set the coolant reserve tank aside.
  6. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  7. Remove in the order indicated in the table.
  8. Install in the reverse order of removal.

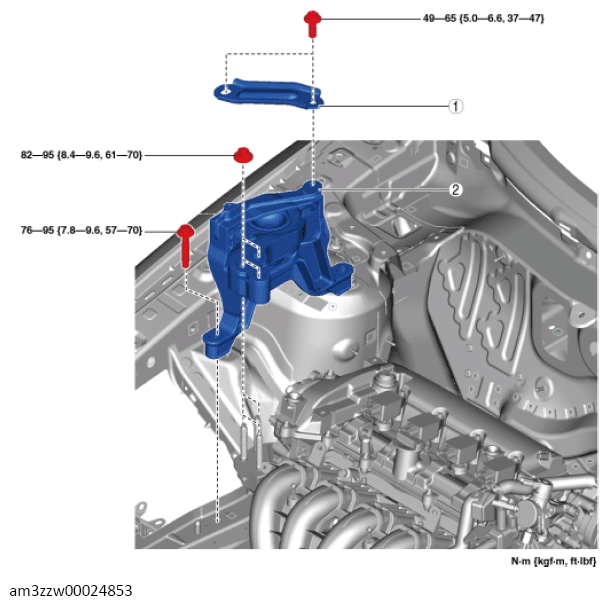

    Fig 2: No. 3 Engine Mount Components With Torque Specification
    G13556742Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 No. 3 engine mount bracket
    2 No. 3 engine mount
    (See NO. 3 ENGINE MOUNT REMOVAL NOTE .)
    (See NO. 3 ENGINE MOUNT INSTALLATION NOTE .)
