No. 3 engine mount removal note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • To prevent deformation of the oil pan, support the engine using the following methods.
    • When using an engine lifter, insert rubber of appropriate size (approx. 20 mm {0.79 in} thickness) between the engine lifter and the oil pan to support the oil pan.
    • When using a garage jack, place rubber of appropriate size (approx. 20 mm {0.79 in} thickness) on a batten which is large enough to cover and support the oil pan.
  1. Before removing the No. 3 engine mount, support the engine (oil pan) using a commercially available engine lifter or garage jack.

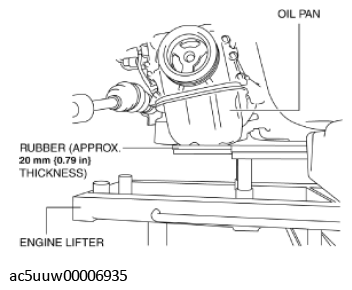

    G11429804Courtesy of MAZDA MOTORS CORP.
  2. Place alignment marks on the locations shown in the illustration so that they can be assembled to the same positions as before removal.

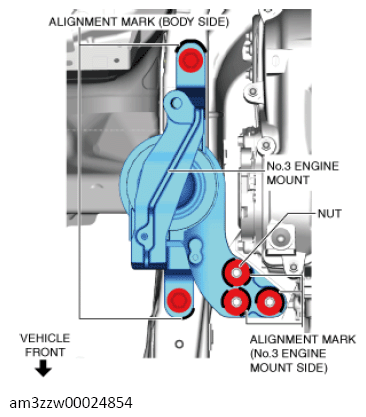

    G13556744Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Paint so that the No. 3 engine mount is framed on the body side and the outline of the nut is framed on the No. 3 engine mount side.
  3. Remove the No. 3 engine mount.
