Rear Door Removal/Installation: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Removing the rear door without supporting it could cause the rear door to fall and cause serious injury. Always perform the procedure with at least one other person to prevent the rear door from falling.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove bolt A shown in the illustration.

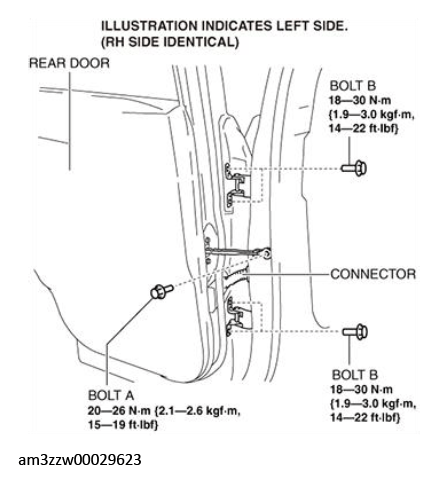

Fig 1: Rear Door Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the connector. (See CONNECTOR REMOVAL NOTE .)
Remove bolts B.
Remove the rear door.
Install in the reverse order of removal.
Adjust the rear door. (See DOOR ADJUSTMENT .)
