Connector Removal Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

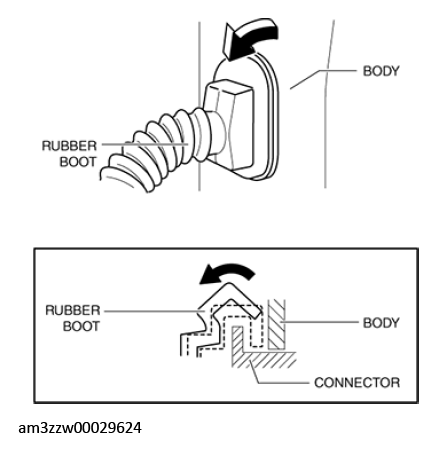

- Partially peel back the rubber boot in the direction of the arrow shown in the illustration and remove it from the connector.
 Courtesy of MAZDA MOTORS CORP.
|
- While pressing the tab in the direction of arrow (1), disconnect the connector in the direction of arrow (2).
 Courtesy of MAZDA MOTORS CORP.
|
