Rear Seat Belt Removal/Installation (Us): Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If the retractor is disassembled, it will not operate correctly due to looseness and excessive play of the internal parts, therefore, do not disassemble the retractor.

Switch the ignition off.
Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)

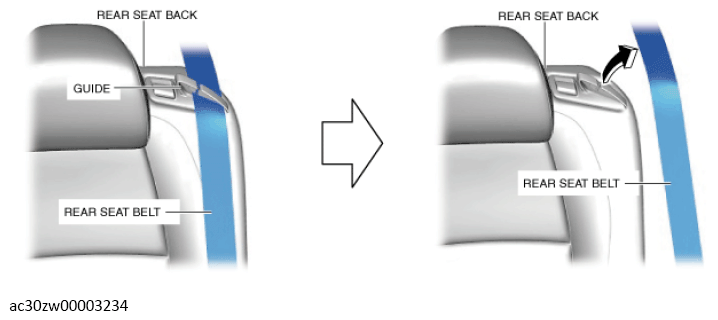

Remove the rear seat belt from the guide.

Courtesy of MAZDA MOTORS CORP.
Remove the following parts:
1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
2. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
3. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION (US) .)
4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
5. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
6. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
7. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
Pull away the trunk side trim enough to secure a space for a hand to be inserted between body panel and trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION (US) .)
Remove the parking assist unit (ultrasonic) (rear seat belt (RH) (with parking assist unit (ultrasonic)). (See PARKING ASSIST UNIT (ULTRASONIC) REMOVAL/INSTALLATION .)

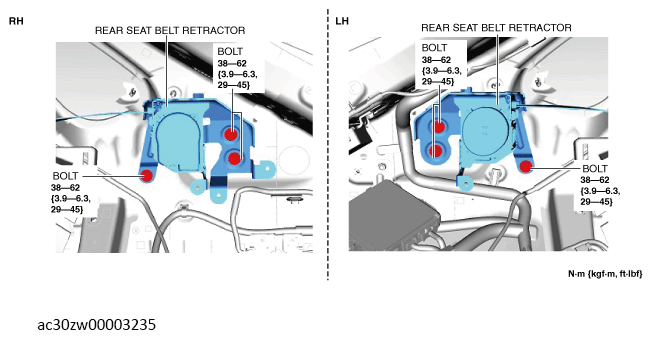

Remove the bolts.

Fig 1: Rear Seat Belt Retractor Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

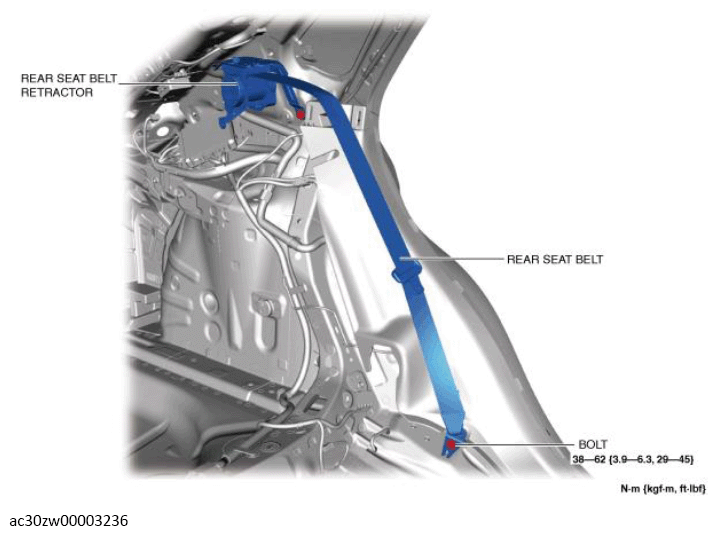

Remove the bolt.

Fig 2: Rear Seat Belt Retractor Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the rear seat belt retractor.
Remove the rear seat belt.
Install in the reverse order of removal. (See BOLT INSTALLATION NOTE .)
