Oil Cooler Removal/Installation: Notes
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
Replacement Part
| Gasket |
| Quantity: 1 |
| Location of use: Oil cooler |
Oil and Chemical Type
| Engine oil |
| Type: Recommended oil |
WARNING:
- Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the engine oil have cooled.
- A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.
- Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
- Remove in the order indicated in the table.
- Use a clean rag to wipe off the mounting surface on the oil filter body and the oil cooler.
- Install in the reverse order of the removal.
- Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
- Start the engine and confirm that there is no oil leakage.
- If there is oil leakage, repair or replace the applicable part.
- Inspect the oil level. (See ENGINE OIL LEVEL INSPECTION .)
- Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION .)

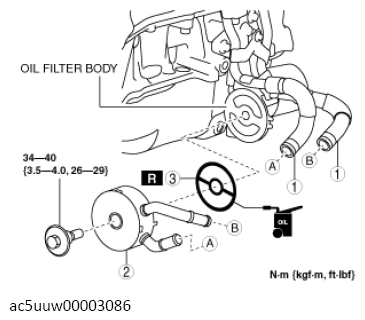

SKYACTIV-G 2.0

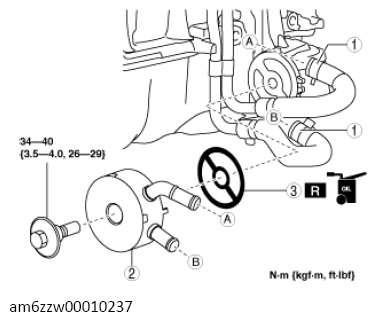

SKYACTIV-G 2.5
COMPONENT DESCRIPTION
| 1 | Water hose |
| 2 | Oil cooler (See OIL COOLER INSTALLATION NOTE .) |
| 3 | Gasket (See GASKET INSTALLATION NOTE .) |
