Oil Cooler Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

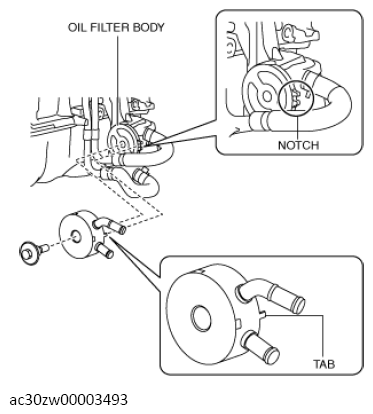

Install the oil cooler with the tab aligned with the notch of the oil filter body.

Courtesy of MAZDA MOTORS CORP.
