Front Fender Stay (LH)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Upper face (See UPPER FACE REMOVAL/INSTALLATION .)
    2. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION (US) .)
    3. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
    4. Front bumper slider No. 1 (See BUMPER SLIDER REMOVAL/INSTALLATION .)

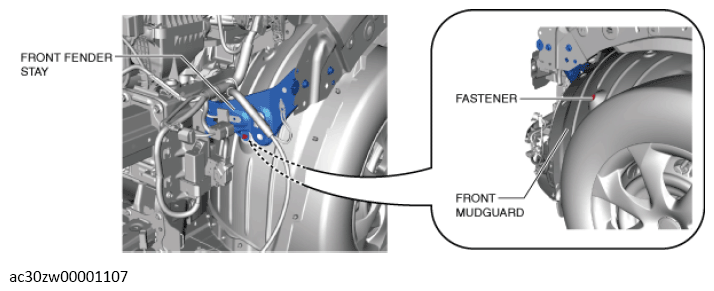

  3. Remove the fastener.
    G13559856Courtesy of MAZDA MOTORS CORP.

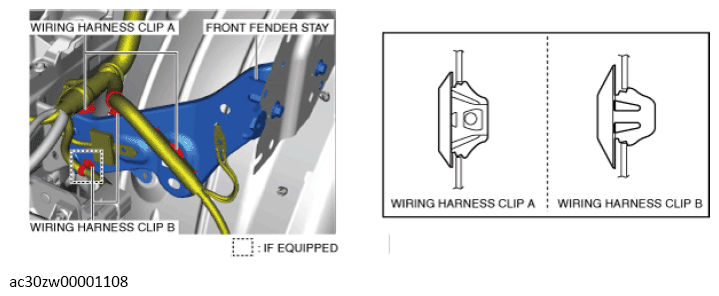

  4. Remove wiring harness clips A and B.
    G13559857Courtesy of MAZDA MOTORS CORP.

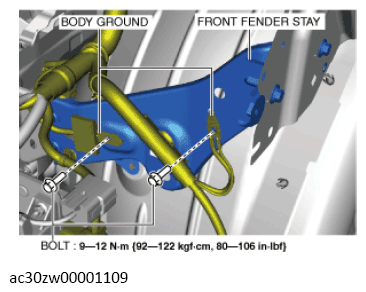

  5. Remove the bolts shown in the illustration and then remove the body ground.
    Fig 1: Body Ground Bolts With Torque Specification
    G13559858Courtesy of MAZDA MOTORS CORP.

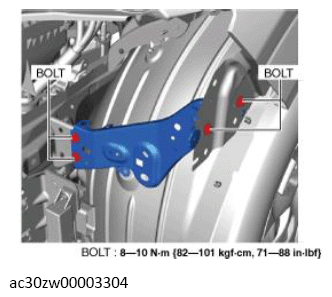

  6. Remove the bolts.
    Fig 2: Front Fender Stay Bolts With Torque Specification
    G13559859Courtesy of MAZDA MOTORS CORP.
  7. Remove the front fender stay.
  8. Install in the reverse order of removal.
  9. Adjust the headlight aiming. (See HEADLIGHT AIMING (US) .)
  10. Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360° VIEW MONITOR SYSTEM AIMING .)
  11. Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING .)
  12. Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING .)
