Front bumper slider No. 2

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Upper face (See UPPER FACE REMOVAL/INSTALLATION .)
    2. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION (US) .)
    3. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)

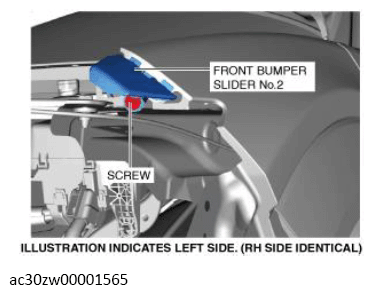

  3. Remove the screw.
    G13559809Courtesy of MAZDA MOTORS CORP.

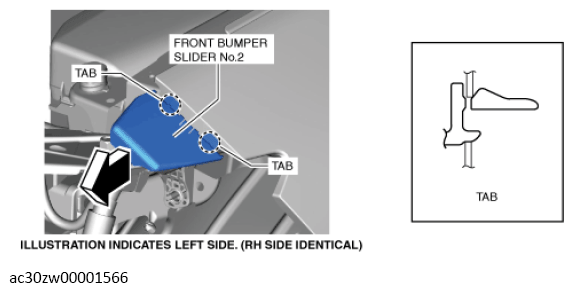

  4. Move front bumper slider No. 2 in the direction of the arrow shown in the illustration and remove it while detaching tabs.
    G13559810Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
  6. Adjust the headlight aiming. (See HEADLIGHT AIMING (US) .)
  7. Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360° VIEW MONITOR SYSTEM AIMING .)
  8. Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING .)
  9. Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING .)
