Front bumper slider No. 1

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the upper face. (See UPPER FACE REMOVAL/INSTALLATION .)
  3. Remove the front bumper (See FRONT BUMPER REMOVAL/INSTALLATION (US) .)
  4. Remove the fastener and the screws shown in the illustration.

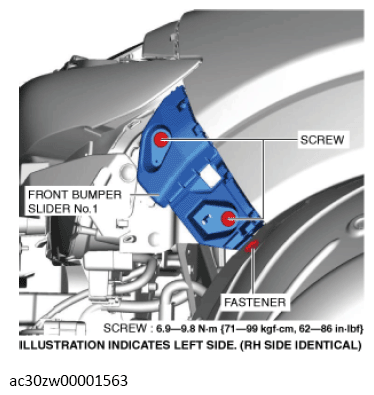

    Fig 1: Front Bumper Slider No. 1 Screws With Torque Specification
    G13559807Courtesy of MAZDA MOTORS CORP.

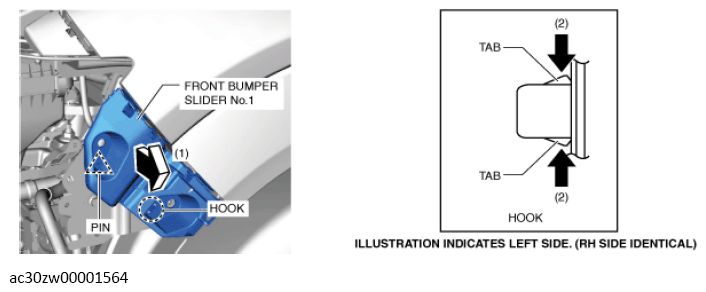

  5. Pull the front bumper slider No. 1 in the direction of arrow (1) shown in the illustration while pressing the hook tabs in the direction of arrows (2).
    G13559808Courtesy of MAZDA MOTORS CORP.
  6. Remove the front bumper slider No. 1 while detaching the pin.
  7. Install in the reverse order of removal.
  8. Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING .)
  9. Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING .)
  10. Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING .)
