Crash Zone Sensor Removal/Installation (Us/CANADA): Center

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch the ignition off.
  2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  3. Remove the following parts:
    1. Upper face (See UPPER FACE REMOVAL/INSTALLATION .)
    2. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION (US) .)
  4. Remove the bolt.

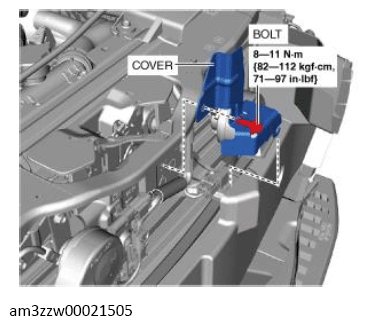

    Fig 1: Crash Zone Sensor Cover Bolt With Torque Specification
    G13559476Courtesy of MAZDA MOTORS CORP.
  5. Remove the cover.
  6. Disconnect the connector. (See CONNECTOR DISCONNECT NOTE .)

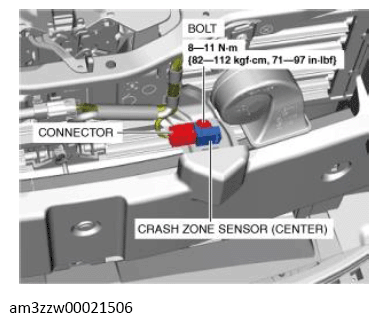

    Fig 2: Crash Zone Sensor Bolt With Torque Specification
    G13559477Courtesy of MAZDA MOTORS CORP.
  7. Remove the bolt.
  8. Remove the crash zone sensor.
  9. Install in the reverse order of removal.
  10. Switch the ignition ON (engine off or on).
  11. Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.
    • If the air bag/seat belt pre-tensioner system warning light does not operate normally, refer to the onboard diagnostic system (air bag system) and perform inspection of the system. (See DTC INSPECTION .)
  12. Perform the 360° view monitor system aiming. (With 360° view monitor system) (See 360° VIEW MONITOR SYSTEM AIMING .)
  13. Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING .)
  14. Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING .)
