Rear Finisher Removal/Installation: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove the following parts:
    1. Side spoiler (See SIDE SPOILER REMOVAL/INSTALLATION .)
    2. Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION .)
    3. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    4. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    5. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    6. Door lock switch (liftgate) (with door lock switch (liftgate)) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION [(US)] .)
    7. Power liftgate (PLG) rear switch (with power liftgate (PLG)) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION .)
    8. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connectors.

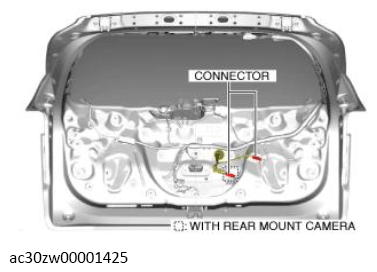

    G13560557Courtesy of MAZDA MOTORS CORP.
  4. Remove the nuts.
    Fig 1: Rear Finisher Nuts With Torque Specification

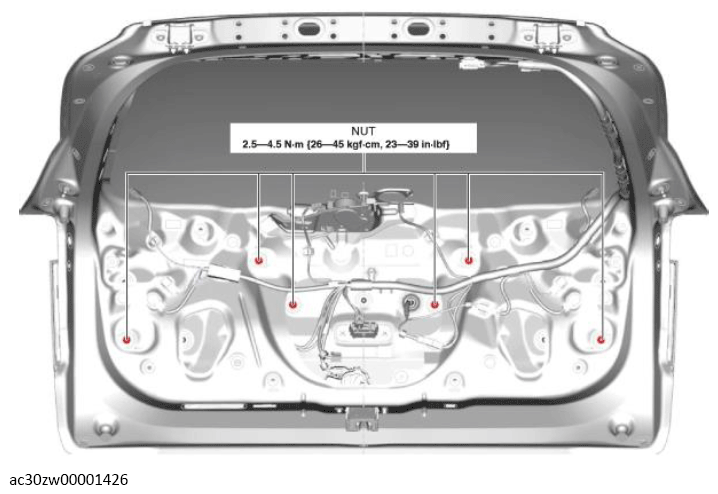

    G13560558Courtesy of MAZDA MOTORS CORP.
  5. Using a remover tool, remove the cap.

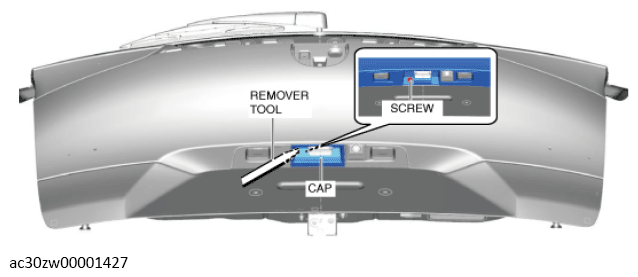

    G13560559Courtesy of MAZDA MOTORS CORP.
  6. Remove the screw.
  7. Using a remover tool, remove the clips.

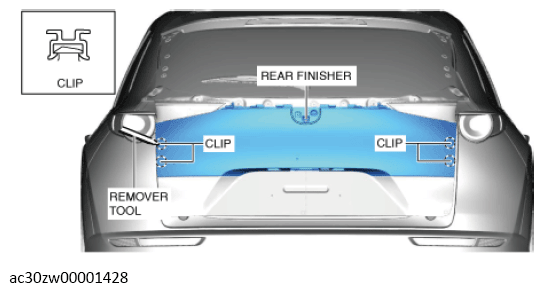

    G13560560Courtesy of MAZDA MOTORS CORP.
  8. Insert a tape-wrapped flathead screwdriver into the position shown in the illustration, rotate it in the direction of the arrow and detach the clips.

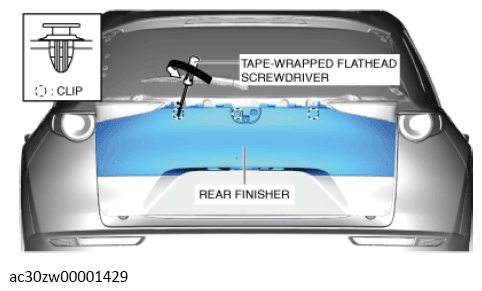

    G13560561Courtesy of MAZDA MOTORS CORP.
  9. Remove the rear finisher in the direction of the arrow shown in the illustration while detaching the clips.

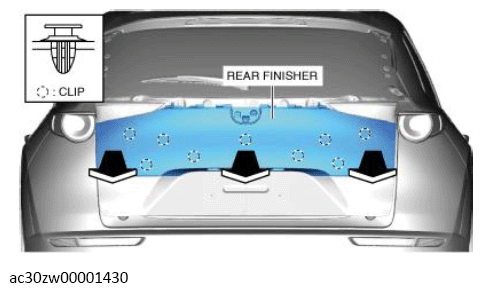

    G13560562Courtesy of MAZDA MOTORS CORP.

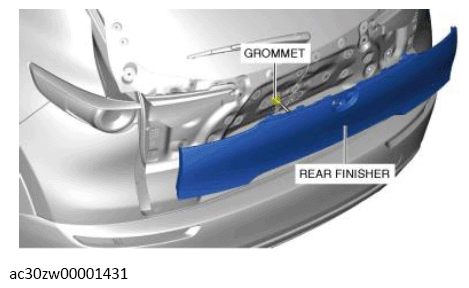

  10. Remove the grommet.
    G13560563Courtesy of MAZDA MOTORS CORP.
  11. Pull the wiring harness out of the vehicle body.
  12. Remove the clips remaining on the vehicle body and install them to the rear finisher.
  13. When removing the wiring harness, perform the following procedure:
    1. Disconnect the connectors.

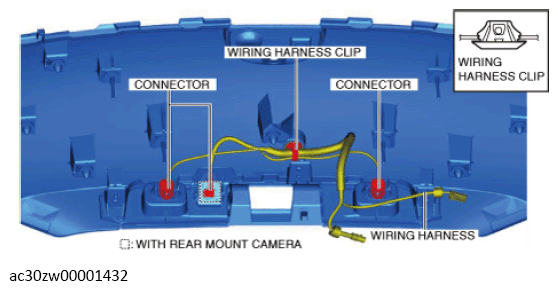

      G13560564Courtesy of MAZDA MOTORS CORP.
    2. Remove the wiring harness clip and remove the wiring harness.
  14. When removing the bracket, perform the following procedure:
    1. Remove the screws.

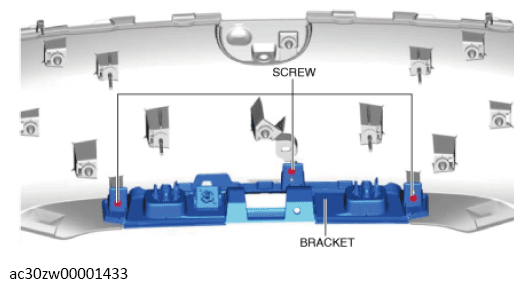

      G13560565Courtesy of MAZDA MOTORS CORP.
    2. Remove the bracket.
  15. Install in the reverse order of removal. (See REAR FINISHER INSTALLATION NOTE .)
    NOTE:
  16. Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING .)
