LH (MTX), RH
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)

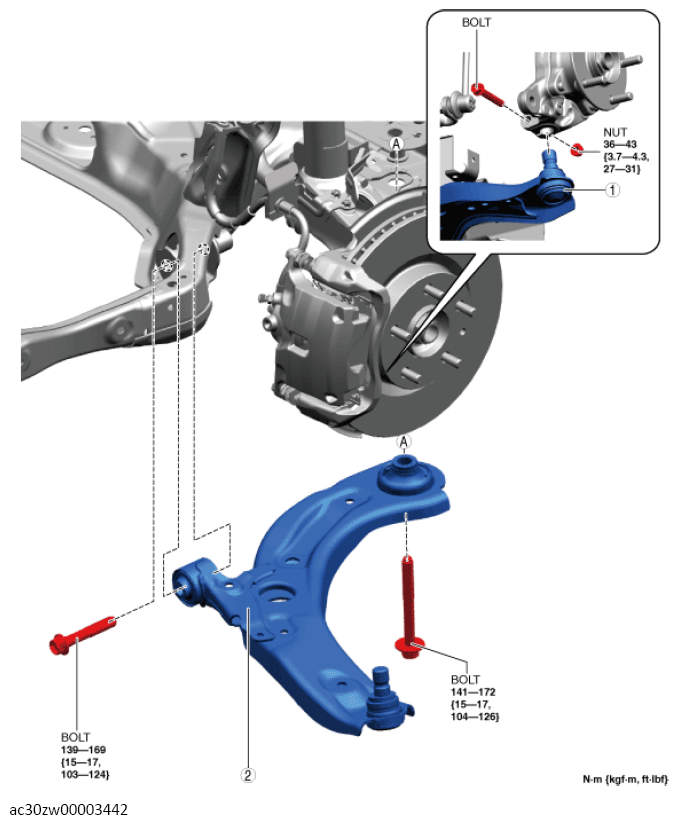

- Remove in the order shown in the illustration.
- Install in the reverse order of removal. (See SUSPENSION LINKS INSTALLATION NOTE .)
- If the front lower arm is replaced, inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT (US) .)
COMPONENT DESCRIPTION
| 1 | Front lower arm ball joint (See FRONT LOWER ARM BALL JOINT INSTALLATION NOTE .) |
| 2 | Front lower arm |
