Hood Release Lever And Release Cable Removal/Installation (Us): Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts:
1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
4. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
5. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
6. Driver-side front mudguard (See MUDGUARD REMOVAL/INSTALLATION .)
7. Upper face (See UPPER FACE REMOVAL/INSTALLATION .)
8. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION (US) .)
9. Driver-side front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
Disconnect the hood release cable from the hood latch.

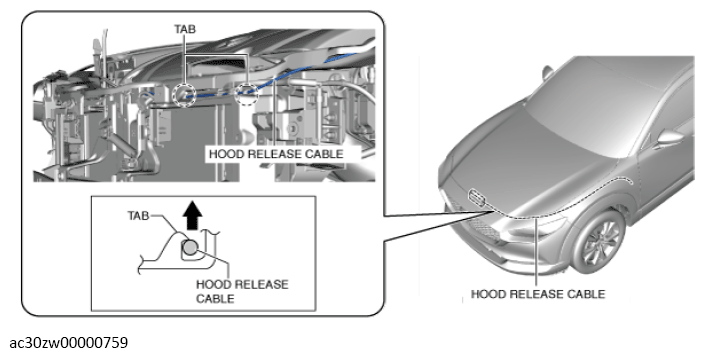

Remove the hood release cable from tabs.

Courtesy of MAZDA MOTORS CORP.

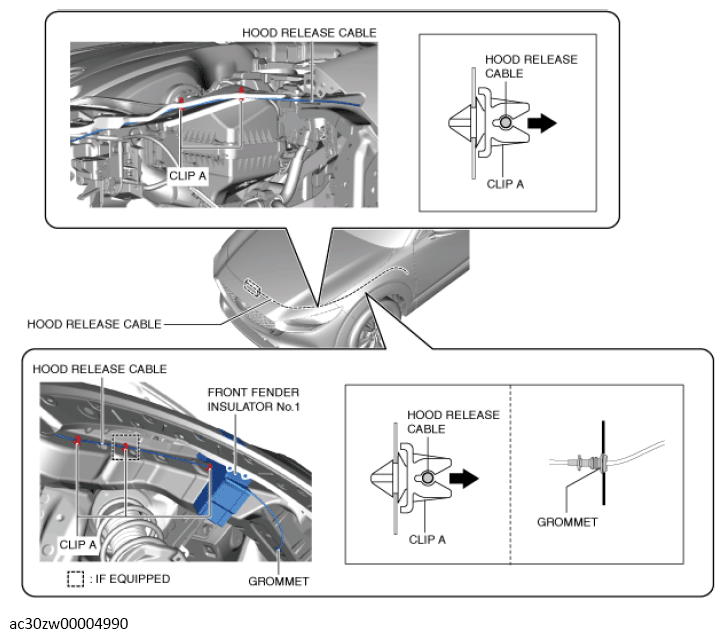

Remove the hood release cable from clips A. (See HOOD RELEASE CABLE INSTALLATION NOTE .)

Courtesy of MAZDA MOTORS CORP.
Remove the grommet.
Pull out the hood release cable from front fender insulator No. 1.
Remove the hood release cable.
Install in the reverse order of removal.
Perform the front radar sensor aiming adjustment. (with front radar sensor) (See FRONT RADAR SENSOR AIMING .)
Perform the front side radar sensor aiming adjustment. (with front side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING .)
Perform the 360° monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING .)
