Fuel-Filler Lid Lock Actuator Removal/Installation: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Fuel is highly flammable and dangerous. Fuel line spills and leakage can cause serious injury or death, and damage to equipment. If fuel comes into contact with the skin and eyes it will cause irritation. To prevent this, always perform the "Fuel Line Safety Procedure" referring to the "BEFORE REPAIR PROCEDURE".
A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before draining fuel, make sure to discharge static electricity by touching a vehicle.

Level the vehicle.
Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION [SKYACTIV-G (VIN L (US))] .) (See BEFORE SERVICE PRECAUTION [SKYACTIV-G (VIN M (US))] .)
Drain the fuel. (See FUEL DRAINING PROCEDURE [SKYACTIV-G (VIN L (US))] .) (See FUEL DRAINING PROCEDURE [SKYACTIV-G (VIN M (US))] .)
Open the fuel-filler lid.
NOTE:
- If the fuel-filler lid cannot be opened due to a discharged battery or malfunctions in the electrical system, open the fuel-filler lid referring to the [FUEL-FILLER LID LOCK ACTUATOR MANUAL RELEASE PROCEDURE]. (See FUEL-FILLER LID LOCK ACTUATOR MANUAL RELEASE PROCEDURE .)
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts:
1. Rear tire (LH) (See WHEEL AND TIRE SPECIFICATION (US) .)
2. Rear mudguard (LH) (See MUDGUARD REMOVAL/INSTALLATION .)
3. Fuel-filler pipe (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G (VIN L (US))] .) (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G (VIN M (US))] .)
4. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
5. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
6. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION (US) .)
7. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
8. Trunk side upper trim (LH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)

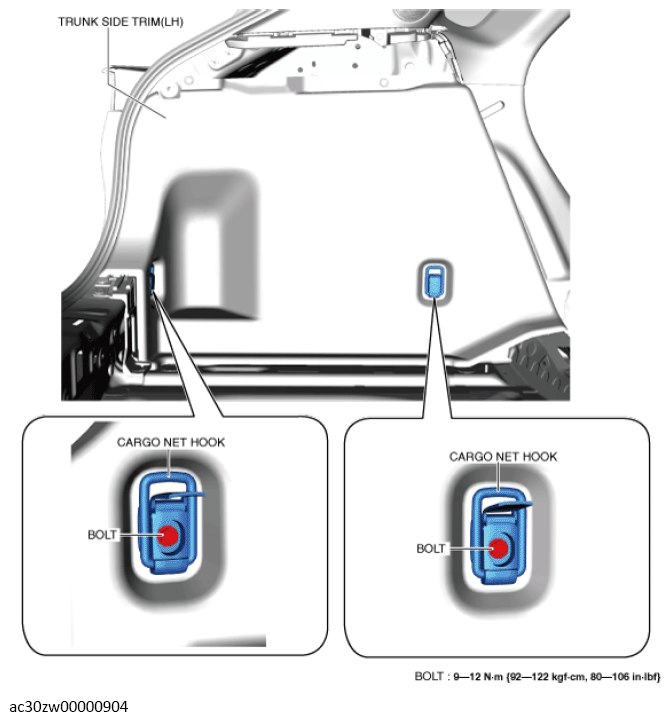

Open the cargo net hook cover and remove the bolt.

Fig 1: Trunk Side Trim (LH), Cargo Net Hooks And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the cargo net hooks.

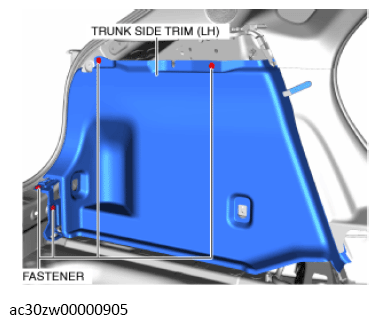

Remove the fasteners.

Courtesy of MAZDA MOTORS CORP.

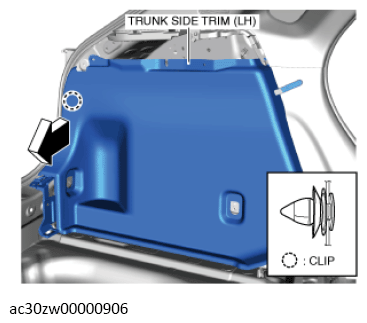

Move the trunk side trim (LH) in the direction of the arrow shown in the illustration while detaching the clip.

Courtesy of MAZDA MOTORS CORP.

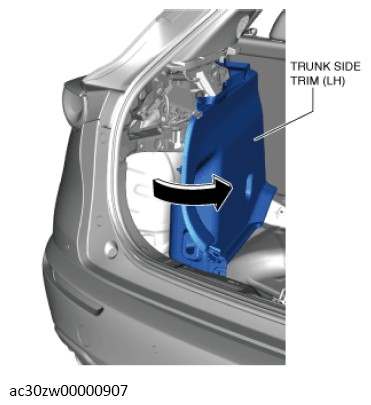

Partially peel the trunk side trim (LH).

Courtesy of MAZDA MOTORS CORP.
Remove the trunk side insulator (LH). (See TRUNK SIDE INSULATOR REMOVAL/INSTALLATION .)

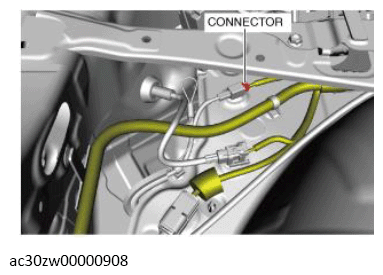

Disconnect the connector.

Courtesy of MAZDA MOTORS CORP.

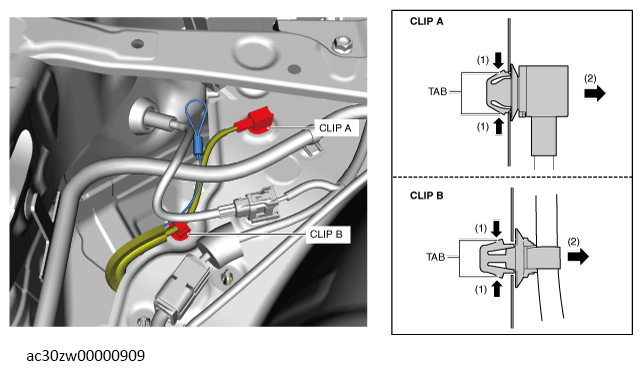

Remove the clips A and B.

Courtesy of MAZDA MOTORS CORP.

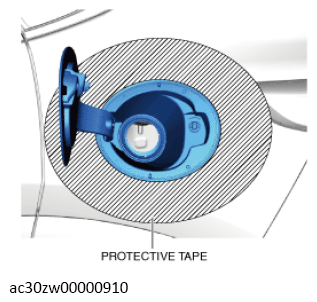

Apply protective tape to the location shown in the illustration to prevent scratches or damage.

Courtesy of MAZDA MOTORS CORP.

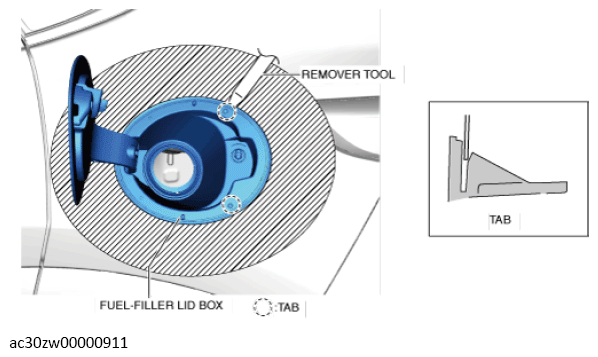

Detach the fuel-filler lid box tabs from the body using a remover tool.

Courtesy of MAZDA MOTORS CORP.

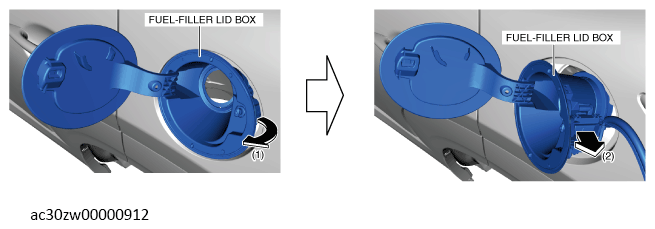

Move the fuel-filler lid box in the order of arrows (1) and (2) shown in the illustration and remove the fuel-filler lid box. (See FUEL-FILLER LID BOX INSTALLATION NOTE .)

Courtesy of MAZDA MOTORS CORP.

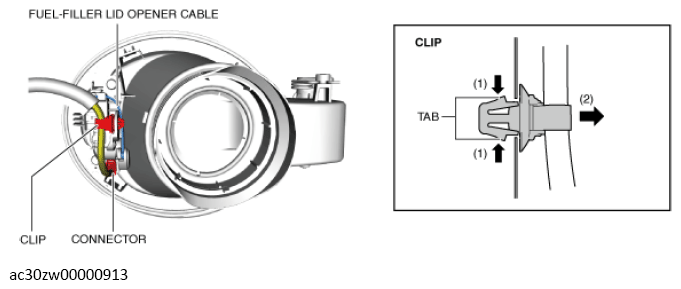

Remove the clip.

Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.
Disconnect the fuel-filler lid opener cable.
Remove the screws.

Courtesy of MAZDA MOTORS CORP.

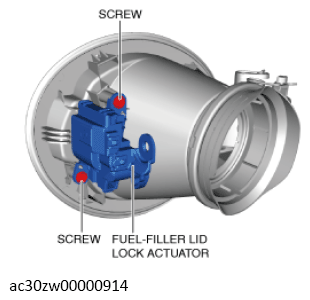

Remove the fuel-filler lid lock actuator.
Install in the reverse order of removal.
Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION [SKYACTIV-G (VIN L (US))] .) (See AFTER SERVICE PRECAUTION [SKYACTIV-G (VIN M (US))] .)
