ATF Level Inspection

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  2. Remove the front under cover No. 1. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
  3. Remove the dipstick securing bolt.
  4. Connect the M-MDS to the DLC-2 and display the PID TFT.
  5. Warm up the engine until the ATF temperature is 50°C {122°F}.
  6. Remove the dipstick and wipe ATF off using a clean cloth while leaving the engine idling.
    WARNING:
    • Keep hands and tools away from the cooling fan even if the cooling fan is not operating to prevent injury, or damage to the cooling fan.
    • Do not touch parts which have become heated. Otherwise, it could cause severe burns or serious injury.

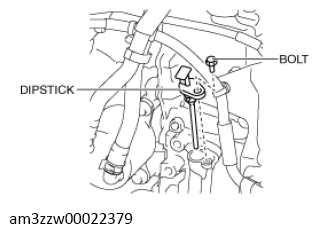

    G13558660Courtesy of MAZDA MOTORS CORP.
  7. Insert the dipstick and pull it out again.
  8. Verify that the ATF is adhering between L and F on the dipstick.
    G13176749Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The ATF color is blue.
    • Only use ATF FZ.
    ATF type
    ATF FZ
  9. Insert the dipstick and install the securing bolt.

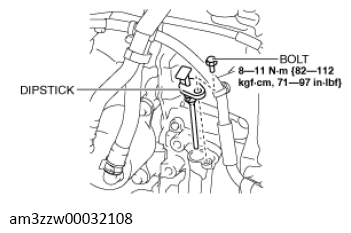

    Fig 1: Dipstick Securing Bolt With Torque Specification
    G13558662Courtesy of MAZDA MOTORS CORP.
  10. Install the front under cover No. 1. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
  11. Install the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
