Rear Package Trim Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Lower the rear seat back.
  3. Remove the following parts:
    1. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    3. Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION .)
    4. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    5. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    6. High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION .)
  4. Remove the fasteners.

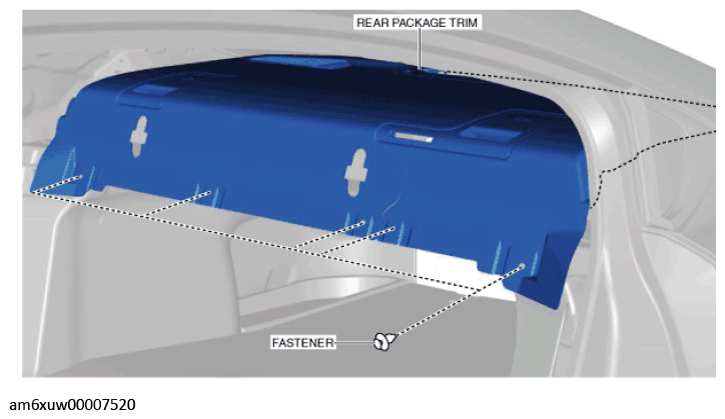

    Fig 1: Rear Package Trim Fasteners
    G11544586Courtesy of MAZDA MOTORS CORP.
  5. Remove the clips.
    Fig 2: Rear Package Trim And Clips
    G12236490Courtesy of MAZDA MOTORS CORP.
  6. Pull up the rear package trim in the direction of the arrow (1) shown in the figure below while remove the guides, pull the rear package trim in the direction of the arrow (2), and remove it.

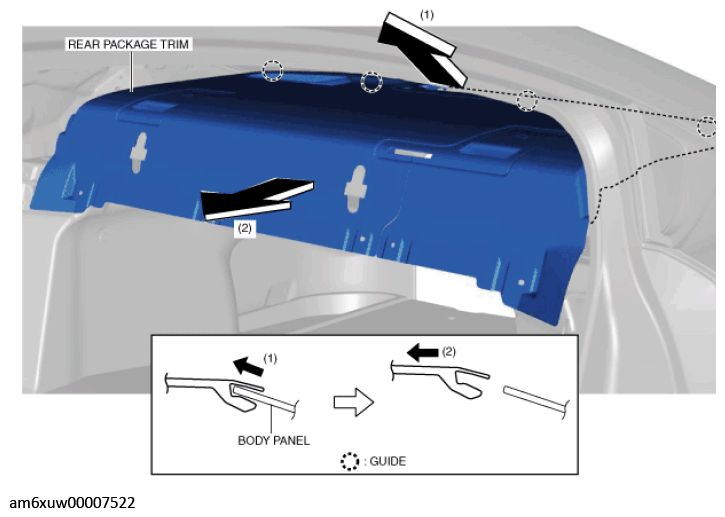

    Fig 3: Pulling Up Rear Package Trim
    G11544588Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
