C-Pillar Trim Removal/Installation

  1. Remove the following parts:
    1. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    3. Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION .)
    4. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
  2. Set the rear seat belt aside from the slit area shown in the figure below.

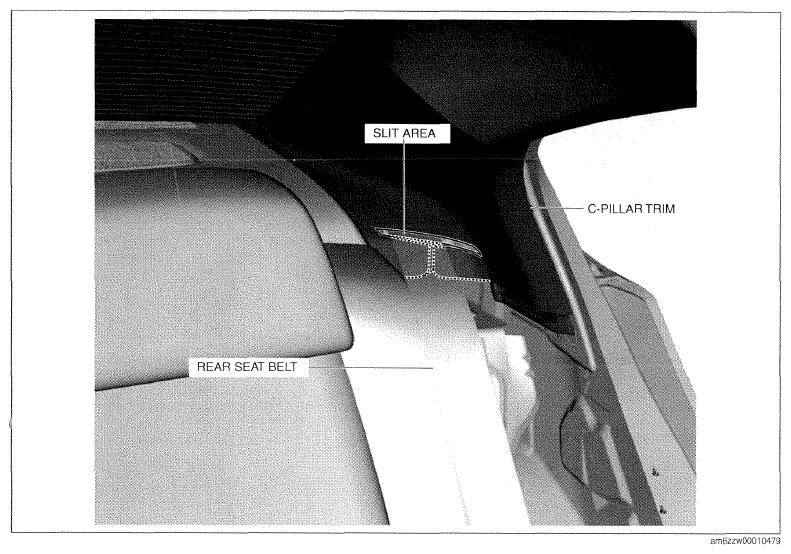

    Fig 1: Setting Rear Seat Belt Aside From Slit Area
    G09788034Courtesy of MAZDA MOTORS CORP.
  3. Pull the C-pillar trim in the direction of the arrow in the order of (1), (2) while detaching clip A, clip B and guides.

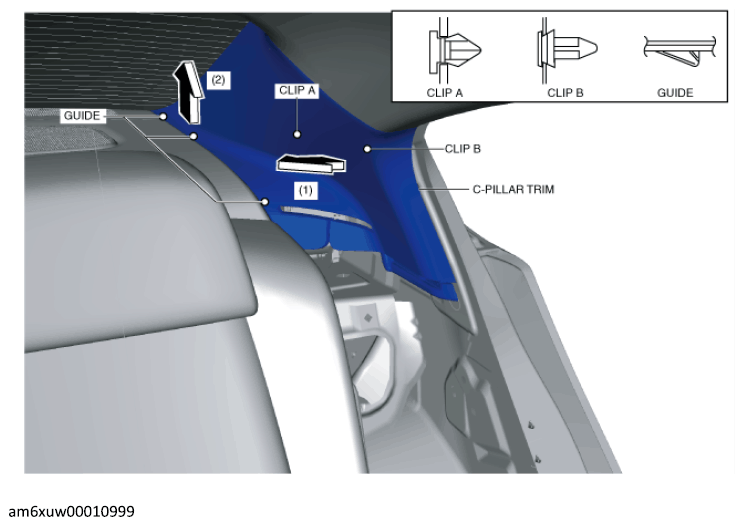

    Fig 2: Pulling C-Pillar Trim
    G12236359Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
