Tire House Trim Removal/Installation
- Remove the following parts:
- Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION )
- Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
- Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION .)

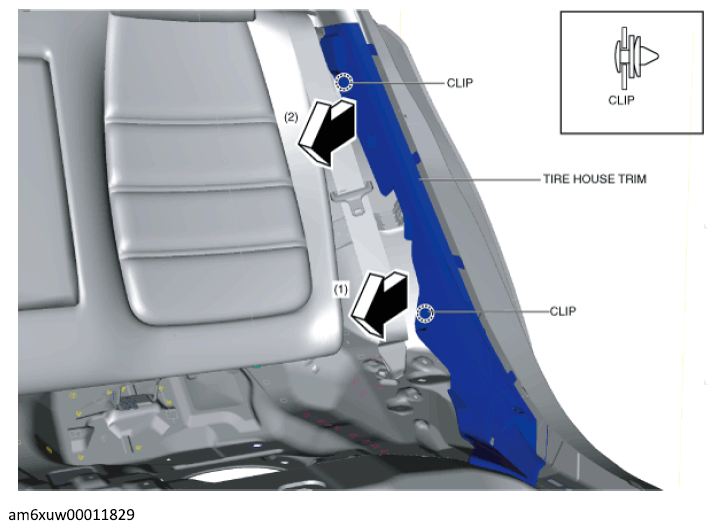

- Pull the tire house trim in the direction of the arrow (1), (2) shown in the figure below and remove it while detaching the clips.
- Install in the reverse order of removal.
