Side Spoiler Removal

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  3. Remove the rear spoiler. (See REAR SPOILER REMOVAL .)
  4. Remove the side spoiler screws.

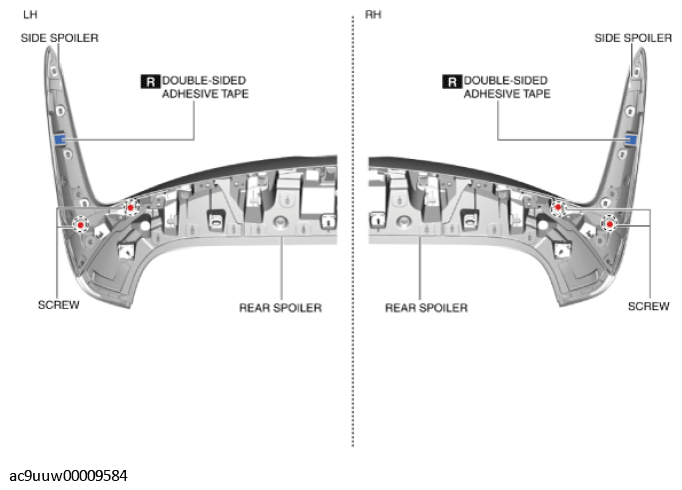

    Fig 1: Removing Side Spoiler Screws
    G11431253Courtesy of MAZDA MOTORS CORP.
  5. Move the side spoilers in the direction of the arrows shown in the figure and pull the side spoiler tabs out of the rear spoiler.

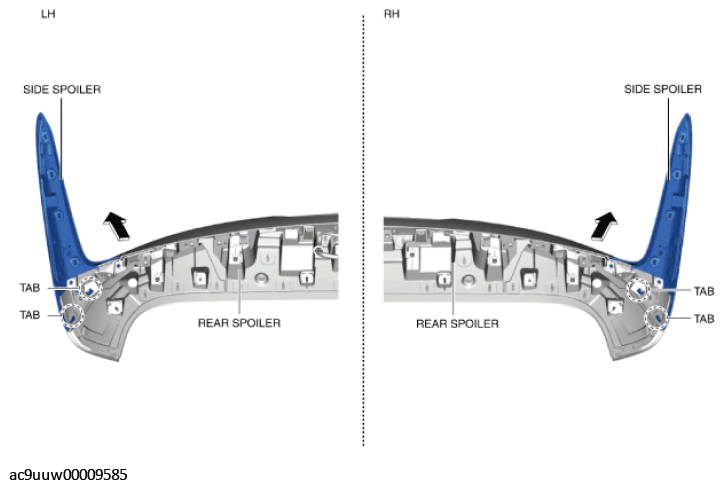

    Fig 2: Moving Side Spoilers
    G11431254Courtesy of MAZDA MOTORS CORP.
