Side Spoiler Installation

  1. When a side spoiler is to be reused, perform the following procedure:
    1. Remove the protector remaining on the side spoiler after removal.
    2. If the protector is damaged, replace the part that is damaged with a new protector.

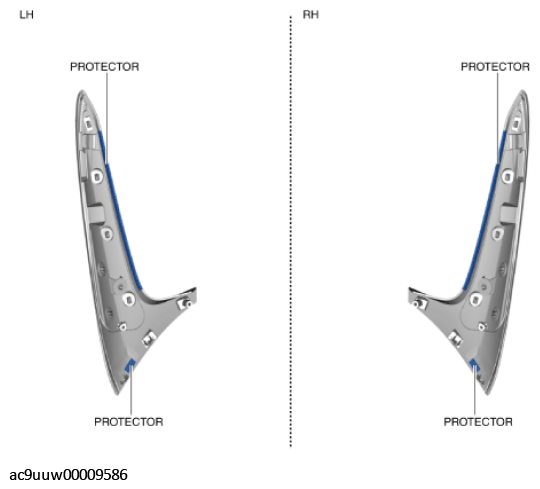

    Fig 1: Removing Protector On Side Spoiler
    G11431249Courtesy of MAZDA MOTORS CORP.
  2. Remove the double-sided adhesive tape on the side spoiler.
  3. Remove any grease or dirt from the adhesion surface of the side spoiler.
  4. Affix the double-sided adhesive tape to the position shown in the figure.

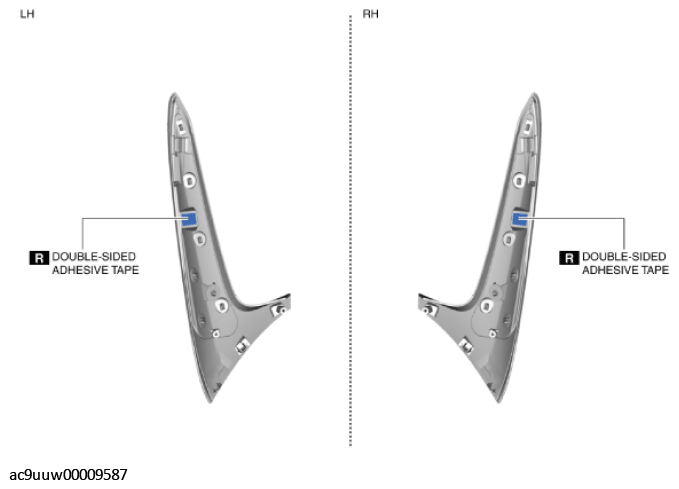

    Fig 2: Affixing Double-Sided Adhesive Tape To Position
    G11431250Courtesy of MAZDA MOTORS CORP.
  5. Press the side spoiler into the rear spoiler side and engage the tabs of the side spoiler with the rear spoiler.

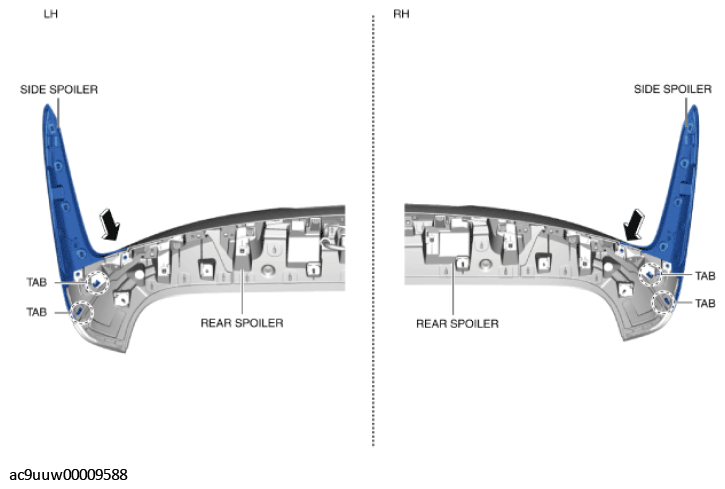

    Fig 3: Engaging Side Spoiler Tabs
    G11431251Courtesy of MAZDA MOTORS CORP.
  6. Install the side spoiler screws.

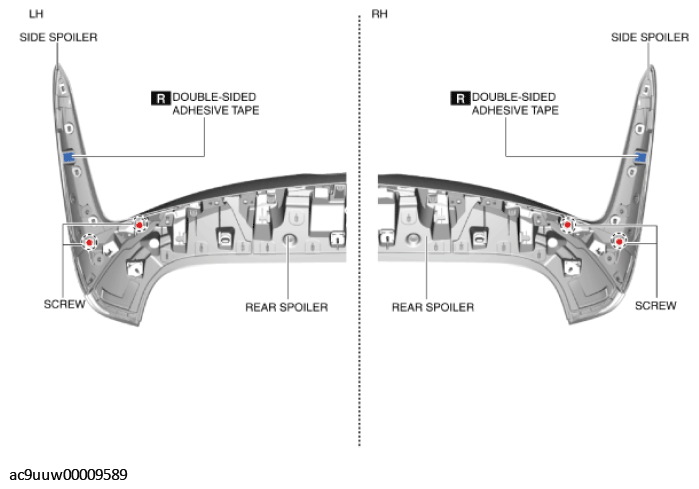

    Fig 4: Installing Side Spoiler Screws
    G11431252Courtesy of MAZDA MOTORS CORP.
  7. Install the rear spoiler. (See REAR SPOILER INSTALLATION .)
  8. Install the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  9. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
