DC-DC Converter Removal/Installation
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Disconnect the service plug. (See SERVICE PLUG DISCONNECTION/CONNECTION [i-ELOOP] .)
- Remove the front seat component (LH). (See FRONT SEAT REMOVAL/INSTALLATION .)

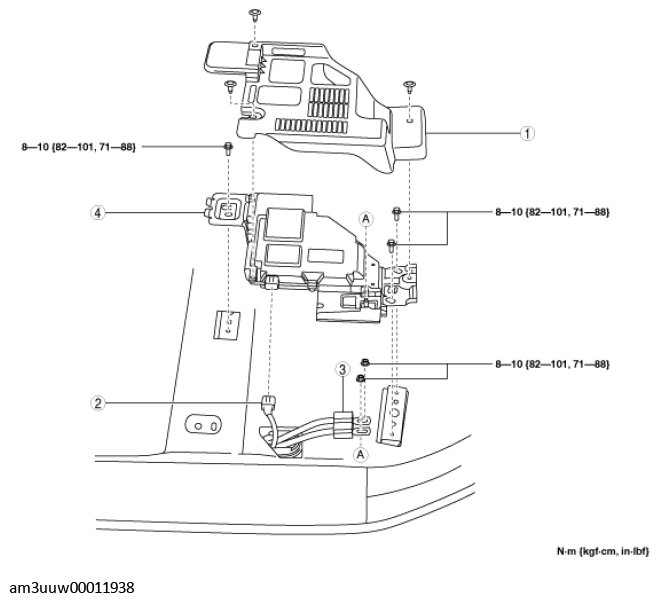

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
COMPONENT DESCRIPTION
| 1 | Cover (See Cover installation note .) |
| 2 | DC-DC converter connector |
| 3 | Battery cable (See Battery cable removal note .) |
| 4 | DC-DC converter |
